014_verilog-a_inverter : Inverter using Verilog-A module
Requires: SmartSpice & Smartview
Minimum Versions: SMARTSPICE 4.6.5.R
The 2 bit MOSFET adder input deck with .TRAN and .MEASURE analysis shows by rubberbanding the voltage source pulse parameters the sensitivity to input stimulus of simple circuit.
Input Files
inverter.va
`include "discipline.h"
module inverter (in,out);
input in;
output out;
voltage in,out;
parameter real vout_high = 5,
vout_low = 0,
vth = vout_high/2,
tdelay = 0.1n from [0:inf),
trise = 1.0n from [0:inf),
tfall = 0.5n from [0:inf);
real vout;
analog
begin
@(initial_step)
begin
$strobe("tdelay = %g trise = %g tfall = %g", tdelay, trise, tfall );
end
@(initial_step or cross(V(in) - vth))
begin
if (V(in) > vth) vout = vout_low;
else vout = vout_high;
end
V(out) <+ transition(vout,tdelay,trise,tfall);
end
endmodule
rubberband_example_14.in

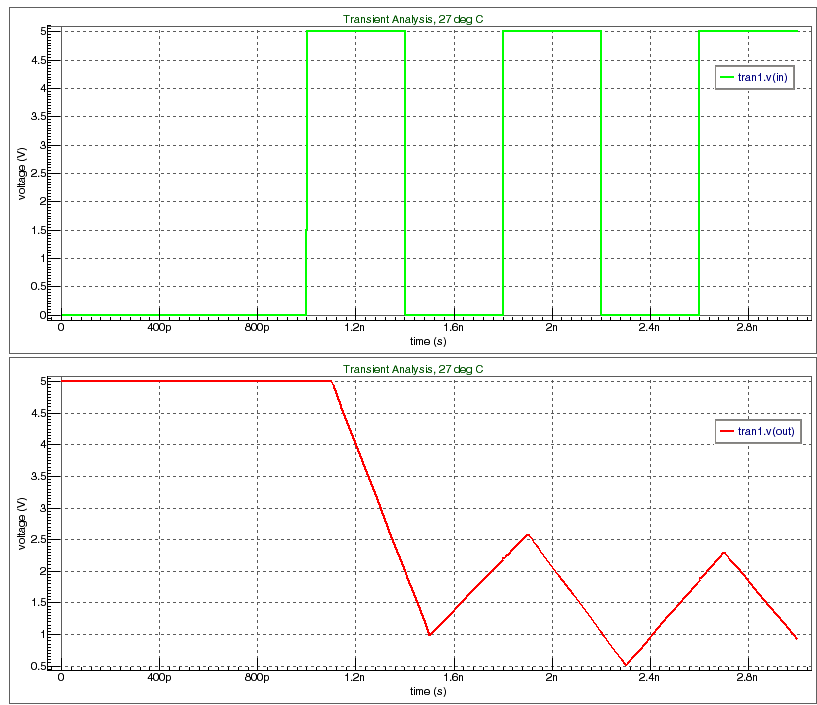

* Simple inverter cir using VA. * Rubberband parameters: * .PARAM PWIDTH ************************************************************* .VERILOG "inverter.va" ************************************************************* YVLG_INV IN OUT INVERTER vout_high=5 RL00 OUT OUTT 10 CL00 OUTT 0 1p .PARAM PWIDTH=0.4n PER='PWIDTH*2 ; abnormal output VIN1 IN 0 PULSE (0 5 1n 1p 1p PWIDTH PER) ; RZ pulse ************************************************************* .TRAN 10p 3n .measure tran c1 cross v(out) val=2.5 .measure tran c1 cross v(out) val=2.5 occur=3 .save TRAN v(in) v(out) .END
