013_bsim4_cap_table : BSIM4 device capacitance table
Requires: SmartSpice & Smartview
Minimum Versions: SMARTSPICE 4.6.5.R
The input deck is a single BSIM4 device .......
Input Files
bsim4.va
/*****************************************************************/
/* Berkeley BSIM4.3.0 Verilog-A model */
/*****************************************************************/
// UPDATED March 8,19 2004
// Contributed By:
// Geoffrey Coram, Ph.D Senior CAD Engineer Analog Devices, Inc.
`define VOLTAGE_MAXDELTA 0.3
`include "discipline.h"
// The following line must be uncommented if RGATEMOD parameter is 3.
//`define RGATE3
// The following line must be uncommented if RBODYMOD parameter is set to 1.
//`define RBODY
//****** Physical constants ******//
`define EPS0 8.85418e-12
`define KboQ 8.617087e-5
`define EPSSI 1.03594e-10
`define Charge_q 1.60219e-19
`define Charge 1.6021918e-19
//****** Mathematical constants and constants of limitation ******//
`define PI 3.141592654
`define EXP_THRESHOLD 34.0
`define MIN_EXP 1.713908431e-15
`define MAX_EXP 5.834617425e14
//****** Constants for the model ******//
`define MM 3
`define DELTA 1.0e-9
`define DELTA_1 0.02
`define DELTA_3 0.02
`define DELTA_4 0.02
//****** Beginning of the model ******//
module mosfet(drain, gate, source, bulk);
inout drain, gate, source, bulk;
electrical drain, gate, source, bulk; // External nodes
electrical drainp, sourcep; // Internal nodes for rdsmod
electrical gatep, gatem; // Internal nodes for rgatemod
electrical drainb, sourceb, bulkp; // Internal nodes for rbodymod
//****** Definition of all instance and model parameters *****//
//****** To customize your model to fit your device, just*****//
//****** modify those parameters in your modelcard *****//
//****** -99.0 is used for parameters which are *****//
//****** calculated if you don't determine them *****//
//****** Minimum conductance ******//
parameter GMIN = 1e-12;
//****** Geometrical Parameters ******//
parameter PS = 0.0;
parameter PD = 0.0;
parameter AS = 0.0;
parameter AD = 0.0;
//****** Overlap Capacitance Parameters ******//
parameter CGBO = -99.0; // Gate-bulk overlap capacitance per length
parameter CGDO = -99.0; // Gate-drain overlap capacitance per width
parameter CGSO = -99.0; // Gate-source overlap capacitance per width
//****** Mosfet type ******//
parameter TYPE = 1; // Define the type of the mosfet (NMOS or PMOS)
//****** Parameters L and W ******//
parameter L = -1.0; // Length
parameter W = -1.0; // Width
//****** Model Selectors/Controllers ******//
parameter MOBMOD = -99.0; // Mobility model selector
parameter RDSMOD = -99.0; // Bias-dependent source/drain resistance model selector
parameter IGCMOD = 0; // Gate-to-channel tunneling current model selector
parameter IGBMOD = 0; // Gate-to-substrate tunneling current model selector
parameter CAPMOD = 2; // Capacitance model selector
parameter RGATEMOD = 2; // Gate resistance model selector
parameter RBODYMOD = 0; // Substrate resistance network model selector
parameter DIOMOD = 1; // Source/drain junction diode IV model selctor
parameter TEMPMOD = -99.0; // Temperature mode selector
parameter GEOMOD = 0; // Geometry-dependent parasitics model selector
parameter RGEOMOD = 0; // Source/drain diffusion resistance and contact model selector
parameter PERMOD = 1; //
//****** Process Parameters ******//
parameter EPSROX = 3.9; // Gate dielctric constant relative to vacuum
parameter TOXE = -99.0; // Electrical gate equivalent oxide thickness
parameter TOXP = TOXE; // Physical gate equivalent oxide thickness
parameter TOXM = TOXE; // Tox at which parameters are extracted
parameter DTOX = 0.0; // Defined as TOXE-TOXP
parameter XJ = 1.5e-7; // S/D junction depth
parameter GAMMA1 = -99.0; // Body-effect coefficient near the surface
parameter GAMMA2 = -99.0; // Body-effect coefficient in the bulk
parameter NDEP = -99.0; // Channel doping concentration at depletion edge for zero body bias
parameter NSUB = 6.0e16; // Substrate doping concentration
parameter NGATE = 0.0; // Poly Si gate doping concentration
parameter NSD = 1.0e20; // S/D doping concentration
parameter VBX = -99.0; // Vbs at which the depletion region width equals XT
parameter XT = 1.55e-7; // Doping depth
parameter RSH = 0.0; // S/D sheet resistance
parameter RSHG = 0.0; // Gate electrode sheet resistance
//****** Basic Parameters ******//
parameter VTH0 = -99.0; // Long-channel threshold voltage at Vbs=0
parameter VFB = -99.0; // Flat-band voltage
parameter PHIN = 0.0; // Non-uniform vertical doping effect on surface potential
parameter K1 = -99.0; // First-order body bias coefficient
parameter K2 = -99.0; // Second-order body bias coefficient
parameter K3 = 80.0; // Narrow width coefficient
parameter K3B = 0.0; // Body effect coefficient of K3
parameter W0 = 2.5e-6; // Narrow width parameter
parameter LPE0 = 1.74e-7; // Lateral non-uniform doping parameter at Vbs=0
parameter LPEB = 0.0; // Lateral non-uniform doping effect on K1
parameter VBM = -3.0; // Maximum applied body bias in VTH0 calculation
parameter DVT0 = 2.2; // First coefficient of short-channel effect on Vth
parameter DVT1 = 0.53; // Second coefficient of short-channel effect on Vth
parameter DVT2 = -0.032; // Body-bias coefficient of short-channel effect on Vth
parameter DVTP0 = 0.0; // First coefficient of drain-induced Vth shift due to for long-channel pocket devices
parameter DVTP1 = 0.0; // Second coefficient of drain-induced Vth shift due to for long-channel pocket devices
parameter DVT0W = 0.0; // First coefficient of narrow width effect on Vth for small channel length
parameter DVT1W = 5.3e6; // Second coefficient of narrow width effect on Vth for small channel length
parameter DVT2W = -0.032; // Body-bias coefficient of narrow width effect on Vth for small channel length
parameter U0 = -99.0; // Low-field mobility
parameter UA = -99.0; // Coefficient of first-order mobility degradation due to vertical field
parameter UB = 1.0e-19; // Coefficient of second-order mobility degradation due to vertical field
parameter UC = -99.0; // Coefficient of mobility degradation due to body-bias effect
parameter EU = -99.0; // Exponent for mobility degradation of MOBMOD=2
parameter VSAT = 8.0e4; // Saturation velocity
parameter A0 = 1.0; // Coefficient of channel-length dependence of bulk charge effect
parameter AGS = 0.0; // Coefficient of Vgs dependence of bulk charge effect
parameter B0 = 0.0; // Bulk charge effect coefficient for channel width
parameter B1 = 0.0; // Bulk charge effect width offset
parameter KETA = -0.047; // Body-bias coefficient of bulk charge effect
parameter A1 = 0.0; // First non-saturation effect parameter
parameter A2 = 1.0; // Second non-saturation factor
parameter WINT = 0.0; // Channel-width offset parameter
parameter LINT = 0.0; // Channel-length offset parameter
parameter DWG = 0.0; // Coefficient of gate bias dependence of Weff
parameter DWB = 0.0; // Coefficient of body bias dependence of Weff
parameter VOFF = -0.08; // Offset voltage in subthreshold region for large W and L
parameter VOFFL = 0.0; // Channel-length dependence of VOFF
parameter MINV = 0.0; // Vgsteff fitting parameter for moderate inversion condition
parameter NFACTOR = 1.0; // Subthreshold swing factor
parameter ETA0 = 0.08; // DIBL coefficient in subthreshold region
parameter ETAB = -0.07; // Body-bias coefficient for the subthreshold DIBL effect
parameter DROUT = 0.56; // Channel-length dependence of DIBL effect on Rout
parameter DSUB = DROUT; // DIBL coefficient exponent in subthreshold region
parameter CIT = 0.0; // Interface trap capacitance
parameter CDSC = 2.4e-4; // Coupling cpacitance between S/D and channel
parameter CDSCB = 0.0; // Body-bias sensivity of CDSC
parameter CDSCD = 0.0; // Drain-bias sensivity of CDSC
parameter PCLM = 1.3; // Channel-length modulation parameter
parameter PDIBL1 = 0.39; // Parameter for DIBL effect on Rout
parameter PDIBL2 = 0.0086; // Parameter for DIBL effect on Rout
parameter PDIBLB = 0.0; // Body-bias coefficient of DIBL effect on Rout
parameter PSCBE1 = 4.24e8; // First substrate current induced body-effect parameter
parameter PSCBE2 = 1.0e-5; // Second substrate current induced body-effect parameter
parameter PVAG = 0.0; // Gate-bias dependence of Early voltage
parameter DELTA = 0.01; // Parameter for DC Vdseff
parameter FPROUT = 0.0; // Effect of pocket implant on Rout degradation
parameter PDITS = 0.0; // Impact of drain-induced Vth shift on Rout
parameter PDITSD = 0.0; // Vds dependence of drain-induced Vth shift for Rout
parameter PDITSL = 0.0; // Channel-length dependence of drain-induced Vth shift for Rout
parameter LAMBDA = -99.0; // Velocity overshoot coefficient
parameter VTL = -99.0; // Thermal velocity
parameter LC = 5.0e-9; // Velocity back scattering coefficient
parameter XN = 3.0; // Velocity back scattering coefficient
//****** Assymetric and Bias-Dependent Rds Model Parameters ******//
parameter RDSW = 200.0; // Zero bias LDD resistance per unit width for RDSMOD=0
parameter RDSWMIN = 0.0; // LDD resistance per unit width at high Vgs and zero Vbs for RDSMOD=0
parameter RDW = 100.0; // Zero bias lightly-doped drain resistance Rd per unit width for RDSMOD=1
parameter RDWMIN = 0.0; // Lightly-doped drain resistance Rd per unit width at high Vgs and zero Vbs for RDSMOD=1
parameter RSW = 100.0; // Zero bias lightly-doped source resistance Rd per unit width for RDSMOD=1
parameter RSWMIN = 0.0; // Lightly-doped source resistance Rd per unit width at high Vgs and zero Vbs for RDSMOD=1
parameter PRWG = 1.0; // Gate-bias dependence of LDD resistance
parameter PRWB = 0.0; // Body-bias dependence of LDD resistance
parameter WR = 1.0; // Channel-width dependence parameter of LDD resistance
parameter NRS = -99.0; // Number of source diffusion squares
parameter NRD = -99.0; // Number of drain diffusion squares
//****** Impact Ionization Current Model Parameters ******//
parameter ALPHA0 = 0.0; // First parameter of impact ionization current
parameter ALPHA1 = 0.0; // Isub parameter length scaling
parameter BETA0 = 30.0; // Second parameter of impact ionization current
//****** Gate Induced Drain Leakage Model Parameters ******//
parameter AGIDL = 0.0; // Pre-exponential coefficient for GIDL
parameter BGIDL = 2.3e9; // Exponential coefficient for GIDL
parameter CGIDL = 0.5; // Parameter for body-bias effect on GIDL
parameter EGIDL = 0.8; // Fitting parameter for band bending for GIDL
//****** Gate Dielectric Tunneling Current Model Parameters ******//
parameter AIGBACC = 0.43; // Parameter for Igb in accumulation
parameter BIGBACC = 0.054; // Parameter for Igb in accumulation
parameter CIGBACC = 0.075; // Parameter for Igb in accumulation
parameter NIGBACC = 1.0; // Parameter for Igb in accumulation
parameter AIGBINV = 0.35; // Parameter for Igb in inversion
parameter BIGBINV = 0.03; // Parameter for Igb in inversion
parameter CIGBINV = 0.006; // Parameter for Igb in inversion
parameter EIGBINV = 1.1; // Parameter for Igb in inversion
parameter NIGBINV = 3.0; // Parameter for Igb in inversion
parameter AIGC = -99.0; // Parameter for Igcs and Igcd
parameter BIGC = -99.0; // Parameter for Igcs and Igcd
parameter CIGC = -99.0; // Parameter for Igcs and Igcd
parameter AIGSD = -99.0; // Parameter for Igs and Igd
parameter BIGSD = -99.0; // Parameter for Igs and Igd
parameter CIGSD = -99.0; // Parameter for Igs and Igd
parameter DLCIG = LINT; // S/D overlap length for Igs and Igd
parameter NIGC = 1.0; // Parameter for Igcs, Igcd, Igs and Igd
parameter POXEDGE = 1.0; // Factor for the gate oxide thickness in S/D overlap regions
parameter PIGCD = 1.0; // Vds dependence of Igcs and Igcd
parameter NTOX = 1.0; // Exponent for the gate oxide ratio
parameter TOXREF = 3.0e-9; // Nominal gate oxide thickness for gate dielectric tunneling current model only
//****** Charge and Capacitance Model Parameters ******//
parameter XPART = 0.0; // Charge partition parameter
parameter CGS0 = 0.0; // Non LDD region source-gate overlap capacitance per unit channel width
parameter CGD0 = 0.0; // Non LDD region drain-gate overlap capacitance per unit channel width
parameter CGB0 = 0.0; // Gate-bulk overlap capcitance per unit channel length
parameter CGSL = 0.0; // Overlap capacitance between gate and lightly-doped source region
parameter CGDL = 0.0; // Overlap capacitance between gate and lightly-doped source region
parameter CKAPPAS = 0.6; // Coefficient of bias-dependent overlap capacitance for the source side
parameter CKAPPAD = CKAPPAS; // Coefficient of bias-dependent overlap capacitance for the drain side
parameter CF = -99.0; // Fringing field capacitance
parameter CLC = 1.0e-7; // Constant term for the short channel model
parameter CLE = 0.6; // Exponential term for the short channel model
parameter DLC = LINT; // Channel-length offset parameter for CV model
parameter DWC = WINT; // Channel-width offset parameter for CV model
parameter VFBCV = -1.0; // Flat-band voltage parameter
parameter NOFF = 1.0; // CV parameter in Vgstett,CV for weak to strong inversion
parameter VOFFCV = 0.0; // CV parameter in Vgstett,CV for weak to strong inversion
parameter ACDE = 1.0; // Exponential coefficient for charge thickness in CAPMOD=2 for accumulation and depletion regions
parameter MOIN = 15.0; // Coefficient for the gate-bias dependent surface potential
//****** High-Speed/RF Model Parameters ******//
parameter XRCRG1 = 12.0; // Parameter for distributed channel-resistance effect for intrinsic-input resistance
parameter XRCRG2 = 1.0; // Parameter to account for the excess channel diffusion resistance
parameter RBPB = 50.0; // Resistance connected between bNodePrime and bNode
parameter RBPD = 50.0; // Resistance connected between bNodePrime and dbNode
parameter RBPS = 50.0; // Resistance connected between bNodePrime and sbNode
parameter RBDB = 50.0; // Resistance connected between dbNodePrime and bNode
parameter RBSB = 50.0; // Resistance connected between sbNodePrime and bNode
parameter GBMIN = 1.0e-12; // Conductance in parallel with each of the five substrate resistances to avoid potential numerical instability
//****** Layout-Dependent Parasistics Model Parameters ******//
parameter DMCG = 0.0; // Distance from S/D contact center to the gate edge
parameter DMCI = DMCG; // Distance from S/D contact center to the isolation edge in the channel-length direction
parameter DMDG = 0.0; // Same as DMCG but for merged device only
parameter DMCGT = 0.0; // DMCG of test structures
parameter NF = 1.0; // Number of device fingers
parameter DWJ = DWC; // Offset of the S/D junction width
parameter MIN = 0.0; // Whether to minimize the number of drain or source diffusions for even-number fingered device
parameter XGW = 0.0; // Distance from the gate contact to the channel edge
parameter XGL = 0.0; // Offset of the gate length due to variations in patterning
parameter XL = 0.0; // Channel length offset due to mask/etch effect
parameter XW = 0.0; // Channel width offset due to mask/etch effect
parameter NGCON = 1.0; // Number of gate contacts
//****** Assymetric Source/Drain Junction Diode Model Parameters ******//
parameter IJTHSREV = 0.1; // Limiting current in reverse bias region
parameter IJTHDREV = IJTHSREV; // Idem
parameter IJTHSFWD = 0.1; // Limiting current in forward bias region
parameter IJTHDFWD = IJTHSFWD; // Idem
parameter XJBVS = 1.0; // Fitting parameter for diode breakdown
parameter XJBVD = XJBVS; // Idem
parameter BVS = 10.0; // Breakdown voltage
parameter BVD = BVS; // Idem
parameter JSS = 1.0e-4; // Bottom junction reverse saturation current density
parameter JSD = JSS; // Idem
parameter JSWS = 0.0; // Isolation-edge sidewall reverse saturation current density
parameter JSWD = JSWS; // Idem
parameter JSWGS = 0.0; // Gate-edge sidewall reverse saturation current density
parameter JSWGD = JSWGS; // Idem
parameter CJS = 5.0e-4; // Bottom junction capacitance per unit area at zero bias
parameter CJD = CJS; // Idem
parameter MJS = 0.5; // Bottom junction capacitance grating coefficient
parameter MJD = MJS; // Idem
parameter MJSWS = 0.33; // Isolation-edge sidewall junction capacitance grading coefficient
parameter MJSWD = MJSWS; // Idem
parameter CJSWS = 5.0e-10; // Isolation-edge sidewall junction capacitance per unit area
parameter CJSWD = CJSWS; // Idem
parameter CJSWGS = CJSWS; // Gate-edge sidewall junction capacitance per unit length
parameter CJSWGD = CJSWS; // Idem
parameter MJSWGS = MJSWS; // Gate-edge sidewall junction capacitance grading coefficient
parameter MJSWGD = MJSWS; // Idem
parameter PBS = 1.0; // Bottom junction built-in potential
parameter PBD = PBS; // Idem
parameter PBSWS = 1.0; // Isoaltion-edge sidewall junction built-in potential
parameter PBSWD = PBSWS; // Idem
parameter PBSWGS = PBSWS; // Gare-edge sidewall junction built-in potential
parameter PBSWGD = PBSWS; // Idem
//****** Temperature Dependence Parameters ******//
parameter TNOM = 27; // Temperature at which parameters are extracted
parameter UTE = -1.5; // Mobility temperature exponent
parameter KT1 = -0.11; // Tempertature coefficient for threshold voltage
parameter KT1L = 0.0; // Channel length dependence of the temperature coefficient for threshold voltage
parameter KT2 = 0.022; // Body-bias coefficient of Vth temperature effect
parameter UA1 = 1.0e-9; // Temperature coefficient for UA
parameter UB1 = -1.0e-18; // Temperature coefficient for UB
parameter UC1 = -99.0; // Temperature coefficient for UC
parameter AT = 3.3e4; // Temperature coefficient for saturation velocity
parameter PRT = 0.0; // Temperature coefficient for Rdsw
parameter NJS = 1.0; // Emission coefficients of junction for drain and source jonctions
parameter NJD = NJS; // Idem
parameter XTIS = 3.0; // Junction current temperature exponents for source and drain junctions
parameter XTID = XTIS; // Idem
parameter TPB = 0.0; // Temperature coefficient of PB
parameter TPBSW = 0.0; // Temperature coefficient of PBSW
parameter TPBSWG = 0.0; // Temperature coefficient of PBSWG
parameter TCJ = 0.0; // Temperature coefficient of CJ
parameter TCJSW = 0.0; // Temperature coefficient of CJSW
parameter TCJSWG = 0.0; // Temperature coefficient of CJSWG
//****** Stress Effect Model Parameters ******//
parameter SA = 0.0; // Distance between OD edge to poly from one side
parameter SB = 0.0; // Distance between OD edge to poly from other side
parameter SD = 0.0; // Distance between neighbouring fingers
parameter SAREF = 1e-6; // Reference distance between OD and edge to poly of one side
parameter SBREF = 1e-6; // Reference distance between OD and edge to poly of the other side
parameter WLOD = 0.0; // Width parameter for stress effect
parameter KU0 = 0.0; // Mobility degradation/enhancement coefficient for stress effect
parameter KVSAT = 0.0; // Saturation velocity degradation/enhancement parameter for stress effect
parameter TKU0 = 0.0; // Temperature coefficient of KU0
parameter LKU0 = 0.0; // Length dependence of KU0
parameter WKU0 = 0.0; // Width dependence of KU0
parameter PKU0 = 0.0; //
parameter LLODKU0 = 0.0; // Length parameter for U0 stress effect
parameter WLODKU0 = 0.0; // Width parameter for U0 stress effect
parameter KVTH0 = 0.0; // Threshold shift parameter for stress effect
parameter LKVTH0 = 0.0; // Length dependence of KVTH0
parameter WKVTH0 = 0.0; // Width dependence of KVTH0
parameter PKVTH0 = 0.0; // Cross-term dependence of KVTH0
parameter LLODVTH = 0.0; // Length parameter for Vth stress effect
parameter WLODVTH = 0.0; // Width parameter for Vth stress effect
parameter STK2 = 0.0; // K2 shift factor related to VTH0 change
parameter LODK2 = 1.0; // K2 shift modification factor for stress effect
parameter STETA0 = 0.0; // ETA0 shift factor related to VTH0 change
parameter LODETA0 = 1.0; // ETA0 shift modification factor for stress effect
//****** DW and DL Parameters ******//
parameter WL = 0.0; // Coefficient of length dependence for width offset
parameter WLN = 1.0; // Power of length dependence of width offset
parameter WW = 0.0; // Coefficient of width dependence for width offset
parameter WWN = 1.0; // Power of width dependence of width offset
parameter WWL = 0.0; // Coefficient of length and width cross-term dependence for width
parameter LL = 0.0; // Coefficient of length dependence for length offset
parameter LLN = 1.0; // Power of length dependence of length offset
parameter LW = 0.0; // Coefficient of width dependence for length offset
parameter LWN = 1.0; // Power of width dependence of length offset
parameter LWL = 0.0; // Coefficient of length and width cross-term dependence for length
parameter LLC = LL; // Coefficient of length dependence for CV channel length offset
parameter LWC = LW; // Coefficient of width dependence for CV channel length offset
parameter LWLC = LWL; // Power of length and width cross-term dependence for CV channel length offset
parameter WLC = WL; // Coefficient of length dependence for CV channel width offset
parameter WWC = WW; // Coefficient of width dependence for CV channel width offset
parameter WWLC = WWL; // Power of length and width cross-term dependence for CV channel width offset
integer i;
real type, mode, gmin;
real t0, t1, t2, t3, t4, t5, t6, t7, t8, t9, t10, t11, t12, t13;
real tmp, tmp1, tmp2, tmp3, tmp4;
real mobmod, rdsmod, tempmod, rgatemod, permod, geomod, rgeomod;
real igcmod, igbmod, diomod, capmod, rbodymod;
real toxe, toxp, coxe, coxp, epsrox;
real tnom, vtm0, vtm, eg0, eg, ni;
real l, w, lnew, wnew, nf, xl, xw;
real ll, lw, lwl, lln, lwn, lint, dl, leff;
real wl, ww, wwl, wln, wwn, wint, dw, weff;
real gamma1, gamma2, ndep, nsub;
real phi, phin, sqrtphi, k3, vfbzb, w0, phis, sqrtphis;
real xj, nsd, xdep0, litl, vbi, vfbsd, ngate, xdep;
real cdep0, ntox, toxratio, toxratioedge, toxref, poxedge;
real mstar, voff, voffl, voffcbn, minv, ldeb;
real k1, k2, vbx, vbm, xt, vbsc, vfb, vth0, k1ox, k2ox, toxm;
real vtfbphi1, vtfbphi2, thetarout, dsub, theta0vb0;
real drout, pdibl1, pdibl2, factor1, dvt0w, dvt1w;
real dvt1, dvt0, lpe0, lpeb, kt1, kt1l, tratio;
real vgs, vds, vbs, Vds, Vbs, vses, vdes, vbd, vgd;
real vsbs, vdbd, vgb, vded, vgeg, vgmg, vgegm, vgmb;
real vbsb, vbdb, vbeb, vbes, vges, vgms, vdbs, vbesb, vbedb;
real vbseff, v0, dvt2, dvt2w, lt1, ltw, theta0, thetavth;
real delt_vth, kt2, vth_narroww, eta0, etab, ddibl_sft_dvd;
real dibl_sft, lpe_vb, vth, k3b, dvtp0, dvtp1;
real cit, nfactor, cdsc, cdscb, cdscd, n;
real vgs_eff, vgd_eff, Vgs_eff, vgst, expvgst, vgsteff;
real Weff, dwg, dwb, weffcj, powweffwr, wr, ua, ua1, ub, ub1, uc, uc1;
real vsat, vsattemp, at, prt, rdw, rsw, rdwmin, rswmin;
real rdsw, rdswmin, deltemp, u0, u0temp, ute, eu;
real wlc, wwlc, wwc, dwj, rds0, rd0, rs0, rds;
real prwb, prwg, a0, ags, b0, b1, ueff;
real abulk, abulk0, dabulk_dvg, keta, denomi;
real wvcox, wvcoxrds, esat, esatl, a1, a2, Lambda;
real vgst2vtm, vdsat, delta, vdseff, diffvds;
real lambda, vasat, tcen, coxeff, coxeffwovl, beta;
real abovvgst2vtm, fgche1, fgche2, gche, idl;
real fprout, fp, pvag, pvagterm, pclm, cclm, vaclm;
real vadibl, pdiblb, pdits, pditsl, pditsd, vadits;
real pscbe1, pscbe2, vascbe, idsa, ids;
real alpha0, alpha1, beta0, isub, cdrain;
real vtl, vs, lc, xn, tfactor, fsevl;
real grgeltd, xgl, rshg, ngcon, xgw, xrcrg1, xrcrg2, gcrg;
real llodku0, wlod, w_tmp, wlodku0, lku0, wku0, pku0, tku0;
real llodvth, wlodvth, ku0, lkvth0, wkvth0, pkvth0, kvth0;
real ku0temp, ldrn, inv_saref, inv_sbref, inv_od_ref, rho_ref;
real sa, sb, saref, sbref, sd, lodk2, lodeta0, kvsat;
real inv_sa, inv_sb, inv_odeff, rho, od_offset, stk2;
real dvth0_lod, dk2_lod, steta0, deta0_lod;
real pseff, pdeff, adeff, aseff, dmcg, dmcgt, dmcgeff;
real dmcieff, dmci, dmdg, dmdgeff;
real ps, pd, as, ad, imin;
real nrs, nrd, rsh, gsdiff, gddiff, gstot, gdtot, rs, rd;
real agidl, bgidl, cgidl, egidl, igidl, igisl;
real v3, v4, vfbeff, voxacc, voxdepinv, vxnvt, expvxnvt, vaux;
real dlc, dlcig, aechvb, bechvb, aechvbedge, bechvbedge;
real aigc, bigc, cigc, aigsd, bigsd, cigsd, aigbacc, bigbacc;
real cigbacc, nigbacc, aigbinv, bigbinv, cigbinv, nigbinv;
real nigc, pigcd, eigbinv, igc, modif_pigcd, igcs, igcd;
real igs, igd, igb, igbacc, igbinv;
real llc, lwc, lwlc, pbs, pbsws, pbswgs, pbd, pbswd, pbswgd;
real cgbo, param_cgdo, param_cgso, cgdo, cgso;
real xtis, xtid, jss, jsd, jsws, jswd, jswgs, jswgd;
real jss_temp, jsd_temp, jsws_temp, jswd_temp;
real jswgs_temp, jswgd_temp, njs, njd, cgdl, cgsl;
real dwc, tcj, tcjsw, tcjswg, cjs, cjd, cjsws, cjswd;
real cjswgs, cjswgd, cjs_temp, cjd_temp, cjsws_temp, cjswd_temp;
real cjswgs_temp, cjswgd_temp, tpb, tpbsw, tpbswg, phibs, phibd;
real phibsws, phibswd, phibswgs, phibswgd;
real ijthsfwd, ijthsrev, ijthdfwd, ijthdrev, xjbvd, bvd;
real xjbvs, bvs, weffcv, leffcv, cf, acde;
real gbmin, rbdb, grbdb, rbpb, grbpb, rbsb, grbsb, rbpd, grbpd;
real rbps, grbps, nvtms, nvtmd, isbs, isbd, xexpbvs, xexpbvd;
real vjsmfwd, vjdmfwd, ivjsmfwd, ivjdmfwd, sslpfwd, dslpfwd;
real vjsmrev, vjdmrev, ivjsmrev, ivjdmrev, sslprev, dslprev;
real cbs, cbd, evbs, evbd, vbs_jct, vbd_jct;
real csub, clc, cle, abulkcvfactor, xpart, vfbcv;
real coxwl, arg1, qdrn, qbulk, qgate, qsrc, ccn;
real abulkcv, alphaz, vdsatcv, two_third_coxwl;
real vbseffcv, noff, voffcv, vgstnvt, qac0, qsub0;
real vdseffcv, tox, ccen, link, coxwlcen, moin, deltaphi;
real arg, czbd, czbs, czbdsw, czbssw, czbdswg, czbsswg, sarg;
real mjs, mjd, mjsws, mjswd, mjswgs, mjswgd;
real ckappas, ckappad, qgso, qgdo, dt0_dvg;
real qgmb, qgmid, qgb, qbd, qbs, qb, qd, qs;
//****** Function to calculate geometrical parameters ******//
//****** and intermediaries for rd an rs calculation ******//
analog function real get_nuintd;
input nf, minsd;
real nf, minsd;
begin
if ((nf%2) != 0)
get_nuintd = 2.0 * max((nf - 1.0) / 2.0, 0.0);
else
begin
if (minsd == 1) /* minimize # of source */
get_nuintd = 2.0 * max((nf / 2.0 - 1.0), 0.0);
else
get_nuintd = nf;
end
end
endfunction
analog function real get_nuendd;
input nf, minsd;
real nf, minsd;
begin
if ((nf%2) != 0)
get_nuendd = 1.0;
else
begin
if (minsd == 1) /* minimize # of source */
get_nuendd = 2.0;
else
get_nuendd = 0.0;
end
end
endfunction
analog function real get_nuints;
input nf, minsd;
real nf, minsd;
begin
if ((nf%2) != 0)
get_nuints= 2.0 * max((nf - 1.0) / 2.0, 0.0);
else
begin
if (minsd == 1) /* minimize # of source */
get_nuints = nf;
else
get_nuints = 2.0 * max((nf / 2.0 - 1.0), 0.0);
end
end
endfunction
analog function real get_nuends;
input nf, minsd;
real nf, minsd;
begin
if ((nf%2) != 0)
get_nuends = 1.0;
else
begin
if (minsd == 1) /* minimize # of source */
get_nuends = 0.0;
else
get_nuends = 2.0;
end
end
endfunction
analog function real get_ps;
input nf, geo, minsd, weffcj, dmcg, dmci, dmdg;
real nf, geo, minsd, weffcj, dmcg, dmci, dmdg;
real psiso, pssha, psmer;
real t0, t1, t2;
real nuints, nuends;
begin
nuints = 0.0;
nuends = 0.0;
if (geo < 9)
begin
nuints = get_nuints(nf, minsd);
nuends = get_nuends(nf, minsd);
end
t0 = dmcg + dmci;
t1 = dmcg + dmcg;
t2 = dmdg + dmdg;
psiso = t0 + t0 + weffcj;
pssha = t1;
psmer = t2;
case(geo)
0: get_ps = nuends * psiso + nuints * pssha;
1: get_ps = nuends * psiso + nuints * pssha;
2: get_ps = (nuends + nuints) * pssha;
3: get_ps = (nuends + nuints) * pssha;
4: get_ps = nuends * psiso + nuints * pssha;
5: get_ps = (nuends + nuints) * pssha;
6: get_ps = nuends * psmer + nuints * pssha;
7: get_ps = nuends * psmer + nuints * pssha;
8: get_ps = nuends * psmer + nuints * pssha;
9: get_ps = psiso + (nf - 1.0) * pssha;
10: get_ps = nf * pssha;
default: $strobe("Warning: Specified GEO = %d not matched", geo);
endcase
end
endfunction
analog function real get_pd;
input nf, geo, minsd, weffcj, dmcg, dmci, dmdg;
real nf, geo, minsd, weffcj, dmcg, dmci, dmdg;
real pdiso, pdsha, pdmer;
real t0, t1, t2;
real nuintd, nuendd;
begin
nuintd = 0.0;
nuendd = 0.0;
if (geo < 9)
begin
nuintd = get_nuintd(nf, minsd);
nuendd = get_nuendd(nf, minsd);
end
t0 = dmcg + dmci;
t1 = dmcg + dmcg;
t2 = dmdg + dmdg;
pdiso = t0 + t0 + weffcj;
pdsha = t1;
pdmer = t2;
case(geo)
0: get_pd = nuendd * pdiso + nuintd * pdsha;
1: get_pd = (nuendd + nuintd) * pdsha;
2: get_pd = nuendd * pdiso + nuintd * pdsha;
3: get_pd = (nuendd + nuintd) * pdsha;
4: get_pd = nuendd * pdmer + nuintd * pdsha;
5: get_pd = nuendd * pdmer + nuintd * pdsha;
6: get_pd = nuendd * pdiso + nuintd * pdsha;
7: get_pd = (nuendd + nuintd) * pdsha;
8: get_pd = nuendd * pdmer + nuintd * pdsha;
9: get_pd = nf * pdsha;
10: get_pd = pdiso + (nf - 1.0) * pdsha;
default: $strobe("Warning: Specified GEO = %d not matched", geo);
endcase
end
endfunction
analog function real get_as;
input nf, geo, minsd, weffcj, dmcg, dmci, dmdg;
real nf, geo, minsd, weffcj, dmcg, dmci, dmdg;
real asiso, assha, asmer;
real t0;
real nuints, nuends;
begin
nuints = 0.0;
nuends = 0.0;
if (geo < 9)
begin
nuints = get_nuints(nf, minsd);
nuends = get_nuends(nf, minsd);
end
t0 = dmcg + dmci;
asiso = t0 * weffcj;
assha = dmcg * weffcj;
asmer = dmdg * weffcj;
case(geo)
0: get_as = nuends * asiso + nuints * assha;
1: get_as = nuends * asiso + nuints * assha;
2: get_as = (nuends + nuints) * assha;
3: get_as = (nuends + nuints) * assha;
4: get_as = nuends * asiso + nuints * assha;
5: get_as = (nuends + nuints) * assha;
6: get_as = nuends * asmer + nuints * assha;
7: get_as = nuends * asmer + nuints * assha;
8: get_as = nuends * asmer + nuints * assha;
9: get_as = asiso + (nf - 1.0) * assha;
10: get_as = nf * assha;
default: $strobe("Warning: Specified GEO = %d not matched", geo);
endcase
end
endfunction
analog function real get_ad;
input nf, geo, minsd, weffcj, dmcg, dmci, dmdg;
real nf, geo, minsd, weffcj, dmcg, dmci, dmdg;
real adiso, adsha, admer;
real t0;
real nuintd, nuendd;
begin
nuintd = 0.0;
nuendd = 0.0;
if (geo < 9)
begin
nuintd = get_nuintd(nf, minsd);
nuendd = get_nuendd(nf, minsd);
end
t0 = dmcg + dmci;
adiso = t0 * weffcj;
adsha = dmcg * weffcj;
admer = dmdg * weffcj;
case(geo)
0: get_ad = nuendd * adiso + nuintd * adsha;
1: get_ad = (nuendd + nuintd) * adsha;
2: get_ad = nuendd * adiso + nuintd * adsha;
3: get_ad = (nuendd + nuintd) * adsha;
4: get_ad = nuendd * admer + nuintd * adsha;
5: get_ad = nuendd * admer + nuintd * adsha;
6: get_ad = nuendd * adiso + nuintd * adsha;
7: get_ad = (nuendd + nuintd) * adsha;
8: get_ad = nuendd * admer + nuintd * adsha;
9: get_ad = nf * adsha;
10: get_ad = adiso + (nf - 1.0) * adsha;
default: $strobe("Warning: Specified GEO = %d not matched", geo);
endcase
end
endfunction
analog function real get_rendi;
input weffcj, rsh, dmcg, dmci, dmdg, nuend, rgeo, type;
real weffcj, rsh, dmcg, dmci, dmdg, nuend, rgeo, type;
begin
if (type == 1)
begin
case(rgeo)
1, 2, 5:
begin
if (nuend == 0.0)
get_rendi = 0.0;
else
get_rendi = rsh * dmcg / (weffcj * nuend);
end
3, 4, 6:
begin
if ((dmcg + dmci) == 0.0)
$strobe("(dmcg + dmci) can not be equal to zero");
if (nuend == 0.0)
get_rendi = 0.0;
else
get_rendi = rsh * weffcj / (3.0 * nuend * (dmcg + dmci));
end
default:
$strobe("warning: specified rgeo = %d not matched", rgeo);
endcase
end
else
begin
case(rgeo)
1, 3, 7:
begin
if (nuend == 0.0)
get_rendi = 0.0;
else
get_rendi = rsh * dmcg / (weffcj * nuend);
end
2, 4, 8:
begin
if ((dmcg + dmci) == 0.0)
$strobe("(dmcg + dmci) can not be equal to zero");
if (nuend == 0.0)
get_rendi = 0.0;
else
get_rendi = rsh * weffcj / (3.0 * nuend * (dmcg + dmci));
end
default:
$strobe("warning: specified rgeo = %d not matched", rgeo);
endcase
end
end
endfunction
analog function real get_renda;
input weffcj, rsh, dmcg, dmci, dmdg, nuend, rgeo, type;
real weffcj, rsh, dmcg, dmci, dmdg, nuend, rgeo, type;
begin
if (type == 1)
begin
case(rgeo)
1, 2, 5:
begin
if (nuend == 0.0)
get_renda = 0.0;
else
get_renda = rsh * dmcg / (weffcj * nuend);
end
3, 4, 6:
begin
if (dmcg == 0.0)
$strobe("dmcg can not be equal to zero");
if (nuend == 0.0)
get_renda = 0.0;
else
get_renda = rsh * weffcj / (6.0 * nuend * dmcg);
end
default:
$strobe("warning: specified rgeo = %d not matched", rgeo);
endcase
end
else
begin
case(rgeo)
1, 3, 7:
begin
if (nuend == 0.0)
get_renda = 0.0;
else
get_renda = rsh * dmcg / (weffcj * nuend);
end
2, 4, 8:
begin
if (dmcg == 0.0)
$strobe("dmcg can not be equal to zero");
if (nuend == 0.0)
get_renda = 0.0;
else
get_renda = rsh * weffcj / (6.0 * nuend * dmcg);
end
default:
$strobe("warning: specified rgeo = %d not matched", rgeo);
endcase
end
end
endfunction
analog function real get_rtot;
input nf, geo, rgeo, minsd, weffcj, rsh, dmcg, dmci, dmdg, type;
real nf, geo, rgeo, minsd, weffcj, rsh, dmcg, dmci, dmdg, type;
real rint, rend;
real nuintd, nuendd, nuints, nuends;
begin
rend = 0.0;
nuintd = 0.0;
nuendd = 0.0;
nuints = 0.0;
nuends = 0.0;
if (geo < 9) /* since geo = 9 and 10 only happen when nf = even */
begin
nuintd = get_nuintd(nf, minsd);
nuints = get_nuints(nf, minsd);
nuendd = get_nuendd(nf, minsd);
nuends = get_nuends(nf, minsd);
/* internal s/d resistance -- assume shared s or d and all wide contacts */
if (type == 1)
begin
if (nuints == 0.0)
rint = 0.0;
else
rint = rsh * dmcg / ( weffcj * nuints);
end
else
begin
if (nuintd == 0.0)
rint = 0.0;
else
rint = rsh * dmcg / ( weffcj * nuintd);
end
end
/* end s/d resistance -- geo dependent */
case(geo)
0:
begin
if (type == 1)
rend = get_rendi(weffcj, rsh, dmcg, dmci, dmdg, nuends, rgeo, 1);
else
rend = get_rendi(weffcj, rsh, dmcg, dmci, dmdg, nuendd, rgeo, 0);
end
1:
begin
if (type == 1)
rend = get_rendi(weffcj, rsh, dmcg, dmci, dmdg, nuends, rgeo, 1);
else
rend = get_renda(weffcj, rsh, dmcg, dmci, dmdg, nuendd, rgeo, 0);
end
2:
begin
if (type == 1)
rend = get_renda(weffcj, rsh, dmcg, dmci, dmdg, nuends, rgeo, 1);
else
rend = get_rendi(weffcj, rsh, dmcg, dmci, dmdg, nuendd, rgeo, 0);
end
3:
begin
if (type == 1)
rend = get_renda(weffcj, rsh, dmcg, dmci, dmdg, nuends, rgeo, 1);
else
rend = get_renda(weffcj, rsh, dmcg, dmci, dmdg, nuendd, rgeo, 0);
end
4:
begin
if (type == 1)
rend = get_rendi(weffcj, rsh, dmcg, dmci, dmdg, nuends, rgeo, 1);
else
rend = rsh * dmdg / weffcj;
end
5:
begin
if (type == 1)
rend = get_renda(weffcj, rsh, dmcg, dmci, dmdg, nuends, rgeo, 1);
else
rend = rsh * dmdg / (weffcj * nuendd);
end
6:
begin
if (type == 1)
rend = rsh * dmdg / weffcj;
else
rend = get_rendi(weffcj, rsh, dmcg, dmci, dmdg, nuendd, rgeo, 0);
end
7:
begin
if (type == 1)
rend = rsh * dmdg / (weffcj * nuends);
else
rend = get_renda(weffcj, rsh, dmcg, dmci, dmdg, nuendd, rgeo, 0);
end
8:
begin
rend = rsh * dmdg / weffcj;
end
9: /* all wide contacts assumed for geo = 9 and 10 */
begin
if (type == 1)
begin
rend = 0.5 * rsh * dmcg / weffcj;
if (nf == 2.0)
rint = 0.0;
else
rint = rsh * dmcg / (weffcj * (nf - 2.0));
end
else
begin
rend = 0.0;
rint = rsh * dmcg / (weffcj * nf);
end
end
10:
begin
if (type == 1)
begin
rend = 0.0;
rint = rsh * dmcg / (weffcj * nf);
end
else
begin
rend = 0.5 * rsh * dmcg / weffcj;;
if (nf == 2.0)
rint = 0.0;
else
rint = rsh * dmcg / (weffcj * (nf - 2.0));
end
end
default:
$strobe("Warning: specified geo = %d not matched", geo);
endcase
if (rint <= 0.0)
get_rtot = rend;
else if (rend <= 0.0)
get_rtot = rint;
else
get_rtot = rint * rend / (rint + rend);
if(get_rtot==0.0)
$strobe("Warning: zero resistance returned from get_rtot");
end
endfunction
analog function real get_vjm;
input nvtm, ijth, isb, xexpbv;
real nvtm, ijth, isb, xexpbv;
real tb, tc, evjmovnv;
begin
tc = xexpbv;
tb = 1.0 + ijth / isb - tc;
evjmovnv = 0.5 * (tb + sqrt(tb * tb + 4.0 * tc));
get_vjm = nvtm * ln(evjmovnv);
end
endfunction
analog
begin
@(initial_step)
begin
a0 = A0;
a1 = A1;
a2 = A2;
acde = ACDE;
ad = AD;
agidl = AGIDL;
ags = AGS;
aigbacc = AIGBACC;
aigbinv = AIGBINV;
aigc = AIGC;
aigsd = AIGSD;
alpha0 = ALPHA0;
alpha1 = ALPHA1;
as = AS;
at = AT;
b0 = B0;
b1 = B1;
beta0 = BETA0;
bgidl = BGIDL;
bigbacc = BIGBACC;
bigbinv = BIGBINV;
bigc = BIGC;
bigsd = BIGSD;
bvd = BVD;
bvs = BVS;
capmod = CAPMOD;
cdsc = CDSC;
cdscb = CDSCB;
cdscd = CDSCD;
cf = CF;
cgbo = CGBO;
cgdl = CGDL;
cgidl = CGIDL;
cgsl = CGSL;
cigbacc = CIGBACC;
cigbinv = CIGBINV;
cigc = CIGC;
cigsd = CIGSD;
cit = CIT;
cjd = CJD;
cjs = CJS;
cjswd = CJSWD;
cjswgd = CJSWGD;
cjswgs = CJSWGS;
cjsws = CJSWS;
ckappad = CKAPPAD;
ckappas = CKAPPAS;
clc = CLC;
cle = CLE;
delta = DELTA;
diomod = DIOMOD;
dlc = DLC;
dlcig = DLCIG;
dmcg = DMCG;
dmcgt = DMCGT;
dmci = DMCI;
dmdg = DMDG;
drout = DROUT;
dsub = DSUB;
dvt0 = DVT0;
dvt0w = DVT0W;
dvt1 = DVT1;
dvt1w = DVT1W;
dvt2 = DVT2;
dvt2w = DVT2W;
dvtp0 = DVTP0;
dvtp1 = DVTP1;
dwb = DWB;
dwc = DWC;
dwg = DWG;
dwj = DWJ;
egidl = EGIDL;
eigbinv = EIGBINV;
epsrox = EPSROX;
eta0 = ETA0;
etab = ETAB;
eu = EU;
fprout = FPROUT;
gamma1 = GAMMA1;
gamma2 = GAMMA2;
gbmin = GBMIN;
geomod = GEOMOD;
gmin = GMIN;
igbmod = IGBMOD;
igcmod = IGCMOD;
ijthdfwd = IJTHDFWD;
ijthdrev = IJTHDREV;
ijthsfwd = IJTHSFWD;
ijthsrev = IJTHSREV;
imin = MIN;
jsd = JSD;
jss = JSS;
jswd = JSWD;
jswgd = JSWGD;
jswgs = JSWGS;
jsws = JSWS;
k1 = K1;
k2 = K2;
k3 = K3;
k3b = K3B;
keta = KETA;
kt1 = KT1;
kt1l = KT1L;
kt2 = KT2;
ku0 = KU0;
kvsat = KVSAT;
kvth0 = KVTH0;
l = L;
lambda = LAMBDA;
lc = LC;
lint = LINT;
lku0 = LKU0;
lkvth0 = LKVTH0;
ll = LL;
llc = LLC;
lln = LLN;
llodku0 = LLODKU0;
llodvth = LLODVTH;
lodeta0 = LODETA0;
lodk2 = LODK2;
lpe0 = LPE0;
lpeb = LPEB;
lw = LW;
lwc = LWC;
lwl = LWL;
lwn = LWN;
lwlc = LWLC;
minv = MINV;
mjd = MJD;
mjs = MJS;
mjswd = MJSWD;
mjswgd = MJSWGD;
mjswgs = MJSWGS;
mjsws = MJSWS;
mobmod = MOBMOD;
moin = MOIN;
ndep = NDEP;
nf = NF;
nfactor = NFACTOR;
ngate = NGATE;
ngcon = NGCON;
nigbacc = NIGBACC;
nigbinv = NIGBINV;
nigc = NIGC;
njd = NJD;
njs = NJS;
noff = NOFF;
nrd = NRD;
nrs = NRS;
nsd = NSD;
nsub = NSUB;
ntox = NTOX;
param_cgdo = CGDO;
param_cgso = CGSO;
pbd = PBD;
pbs = PBS;
pbswd = PBSWD;
pbswgd = PBSWGD;
pbswgs = PBSWGS;
pbsws = PBSWS;
pclm = PCLM;
pd = PD;
pdibl1 = PDIBL1;
pdibl2 = PDIBL2;
pdiblb = PDIBLB;
pdits = PDITS;
pditsd = PDITSD;
pditsl = PDITSL;
permod = PERMOD;
phin = PHIN;
pigcd = PIGCD;
pku0 = PKU0;
pkvth0 = PKVTH0;
poxedge = POXEDGE;
prt = PRT;
prwb = PRWB;
prwg = PRWG;
ps = PS;
pscbe1 = PSCBE1;
pscbe2 = PSCBE2;
pvag = PVAG;
rbdb = RBDB;
rbodymod = RBODYMOD;
rbpb = RBPB;
rbpd = RBPD;
rbps = RBPS;
rbsb = RBSB;
rdsmod = RDSMOD;
rdsw = RDSW;
rdswmin = RDSWMIN;
rdw = RDW;
rdwmin = RDWMIN;
rgatemod = RGATEMOD;
rgeomod = RGEOMOD;
rsh = RSH;
rshg = RSHG;
rsw = RSW;
rswmin = RSWMIN;
sa = SA;
saref = SAREF;
sb = SB;
sbref = SBREF;
sd = SD;
steta0 = STETA0;
stk2 = STK2;
tcj = TCJ;
tcjsw = TCJSW;
tcjswg = TCJSWG;
tempmod = TEMPMOD;
tku0 = TKU0;
toxe = TOXE;
toxm = TOXM;
toxp = TOXP;
toxref = TOXREF;
tpb = TPB;
tpbsw = TPBSW;
tpbswg = TPBSWG;
type = TYPE;
u0 = U0;
ua = UA;
ua1 = UA1;
ub = UB;
ub1 = UB1;
uc = UC;
uc1 = UC1;
ute = UTE;
vbm = VBM;
vbx = VBX;
vfb = VFB;
vfbcv = VFBCV;
voff = VOFF;
voffcv = VOFFCV;
voffl = VOFFL;
vsat = VSAT;
vth0 = VTH0;
vtl = VTL;
w = W;
w0 = W0;
wint = WINT;
wku0 = WKU0;
wkvth0 = WKVTH0;
wl = WL;
wlc = WLC;
wln = WLN;
wlod = WLOD;
wlodku0 = WLODKU0;
wlodvth = WLODVTH;
wr = WR;
ww = WW;
wwc = WWC;
wwl = WWL;
wwlc = WWLC;
wwn = WWN;
xgl = XGL;
xgw = XGW;
xj = XJ;
xjbvd = XJBVD;
xjbvs = XJBVS;
xl = XL;
xn = XN;
xpart = XPART;
xrcrg1 = XRCRG1;
xrcrg2 = XRCRG2;
xt = XT;
xtid = XTID;
xtis = XTIS;
xw = XW;
if (mobmod == -99.0)
mobmod = 0;
else if ((mobmod != 0) && (mobmod != 1) && (mobmod != 2))
begin
mobmod = 0;
$strobe("Warning: MOBMOD has been set to its default value: 0.");
end
if (rdsmod == -99.0)
rdsmod = 0;
else if ((rdsmod != 0) && (rdsmod != 1))
begin
rdsmod = 0;
$strobe("Warning: RDSMOD has been set to its default value: 0.");
end
if (tempmod == -99.0)
tempmod = 0;
else if ((tempmod != 0) && (tempmod != 1))
begin
tempmod = 0;
$strobe("Warning: TEMPMOD has been set to its default value: 0.");
end
if ((diomod != 0) && (diomod != 1) && (diomod != 2))
begin
diomod = 1;
$strobe("Warning: DIOMOD has been set to its default value: 1.");
end
if ((capmod != 0) && (capmod != 1) && (capmod != 2))
begin
capmod = 2;
$strobe("Warning: CAPMOD has been set to its default value: 2.");
end
if ((permod != 0) && (permod != 1))
begin
permod = 1;
$strobe("Warning: PERMOD has been set to its default value: 1.");
end
if ((igcmod != 0) && (igcmod != 1))
begin
igcmod = 0;
$strobe("Warning: IGCMOD has been set to its default value: 0.");
end
if ((igbmod != 0) && (igbmod != 1))
begin
igbmod = 0;
$strobe("Warning: IGBMOD has been set to its default value: 0.");
end
if ((rbodymod != 0) && (rbodymod != 1))
begin
rbodymod = 0;
$strobe("Warning: RBODYMOD has been set to its default value: 0.");
end
if (toxref <= 0.0)
begin
$strobe("Fatal: TOXREF = %e is not positive.", TOXREF);
$finish(1);
end
if (toxe != -99.0 && toxp != -99.0 && DTOX != 0.0 && (toxe != (toxp + DTOX)))
$strobe("Warning: TOXE, TOXP and DTOX all given and TOXE != TOXP + DTOX. DTOX ignored.");
else if (toxe != -99.0 && toxp == -99.0)
toxp = toxe - DTOX;
else if (toxe == -99.0 && toxp != -99.0)
toxe = toxp + DTOX;
else if (toxp == -99.0 && toxe == -99.0)
begin
toxe = 3.0e-9;
toxp = toxe;
end
if (toxe < 1.0e-10)
$strobe("Warning: TOXE = %e is less than 1A. Recommended TOXE >= 5A", toxe);
if (toxp < 1.0e-10)
$strobe("Warning: TOXP = %e is less than 1A. Recommended TOXP >= 5A", toxp);
if (toxm == -99.0)
toxm = toxe;
if (toxm <= 0.0)
begin
$strobe("Fatal: TOXM = %e is not positive.", toxm);
$finish(1);
end
if (toxm < 1.0e-10)
$strobe("Warning: TOXM = %e is less than 1A. Recommended TOXM >= 5A", toxm);
if (epsrox <= 0.0)
begin
$strobe("Warning: EPSROX is not positive. Default value taken.");
epsrox = 3.9;
end
if (TNOM < -273.15)
begin
$strobe("Warning: TNOM is not physically possible. Default value taken.");
tnom = 300.15;
end
else
tnom = TNOM + 273.15;
if (l <= 0.0 )
begin
$strobe("FATAL : L is not positive.");
$finish(1);
end
if (w <= 0.0 )
begin
$strobe("FATAL : W is not positive.");
$finish(1);
end
if (nf < 1.0)
begin
$strobe("Warning : NF must be at least equal to 1.Default value taken");
nf = 1.0;
end
if (phin < -0.4)
begin
$strobe("Fatal: phin = %e is less than -0.4.", PHIN);
$finish(1);
end
else
if (nsub <= 0.0)
begin
$strobe("Fatal: NSUB = %e is not positive.", NSUB);
$finish(1);
end
else if (NSUB <= 1.0e14)
$strobe("Warning: NSUB = %e may be too small.", NSUB);
else if (NSUB >= 1.0e21)
$strobe("Warning: NSUB = %e may be too large.", NSUB);
if (xj <= 0.0)
$strobe("Fatal: XJ = %e is not positive.", XJ);
if (ngate < 0.0)
begin
$strobe("Fatal: NGATE = %e is not positive.", NGATE);
$finish(1);
end
if (ngate > 1.0e25)
begin
$strobe("Fatal: NGATE = %e is too high.", NGATE);
$finish(1);
end
if ((ngate > 0.0) && (ngate <= 1.0e18))
$strobe("Warning: NGATE = %e is less than 1.E18cm^-3.", NGATE);
if (poxedge <= 0.0)
begin
$strobe("Fatal: POXEDGE = %e is non-positive.", POXEDGE);
$finish(1);
end
if (dsub < 0.0)
begin
$strobe("Fatal: DSUB = %e is negative.", DSUB);
$finish(1);
end
if (drout < 0.0)
begin
$strobe("Fatal: DROUT = %e is negative.", DROUT);
$finish(1);
end
if (pdibl1 < 0.0)
$strobe("Warning: PDIBL1 = %e is negative.", PDIBL1);
if (pdibl2 < 0.0)
$strobe("Warning: PDIBL2 = %e is negative.", PDIBL2);
if (dvt1w < 0.0)
begin
$strobe("Fatal: DVT1W = %e is negative.", DVT1W);
$finish(1);
end
if (dvt1 < 0.0)
begin
$strobe("Fatal: DVT1 = %e is negative.", DVT1);
$finish(1);
end
if (dvt0 < 0.0)
$strobe("Warning: DVT0 = %e is negative.", DVT0);
if (lpe0 < -leff)
begin
$strobe("Fatal: LPE0 = %e is less than -leff.", LPE0);
$finish(1);
end
if (w0 == -weff)
begin
$strobe("Fatal: (W0 + Weff) = 0 causing divided-by-zero.");
$finish(1);
end
if (abs(1.0e-6 / (w0 + weff)) > 10.0)
$strobe("Warning: (W0 + Weff) may be too small.");
if (eta0 < 0.0)
$strobe("Warning: ETA0 = %e is negative.", ETA0);
if (lpeb < -leff)
begin
$strobe("Fatal: LPEB = %e is less than -leff.", LPEB);
$finish(1);
end
if (nfactor < 0.0)
$strobe("Warning: NFACTOR = %e is negative.", NFACTOR);
if (cdsc < 0.0)
$strobe("Warning: CDSC = %e is negative.", CDSC);
if (cdscd < 0.0)
$strobe("Warning: CDSCD = %e is negative.", CDSCD);
if (u0 == -99.0)
u0 = (type == 1) ? 0.067 : 0.025;
if (ua == -99.0)
ua = (mobmod == 2) ? 1.0e-15 : 1.0e-9;
if (uc == -99.0)
uc = (mobmod == 1) ? -0.0465 : -0.0465e-9;
if (uc1 == -99.0)
uc1 = (mobmod == 1) ? -0.056 : -0.056e-9;
if (eu == -99.0)
eu = (type == 1) ? 1.67 : 1.0;;
if (prwg < 0.0)
begin
$strobe("Warning: PRWG = %e is negative. Set to zero.", PRWG);
prwg = 0.0;
end
if (a2 < 0.01)
begin
$strobe("Warning: A2 = %e is too small. Set to 0.01.", a2);
a2 = 0.01;
end
else if (a2 > 1.0)
begin
$strobe("Warning: A2 = %e is larger than 1. A2 is set to 1 and A1 is set to 0.", a2);
a2 = 1.0;
a1 = 0.0;
end
if (delta < 0.0)
begin
$strobe("Fatal: DELTA = %e is less than zero.", delta);
$finish(1);
end
if ((lambda != -99.0) && (lambda > 0.0))
begin
if (lambda > 1.0e-9)
$strobe("Warning: LAMBDA = %e may be too large.", LAMBDA);
end
if (fprout < 0.0)
begin
$strobe("Fatal: FPROUT = %e is negative.", FPROUT);
$finish(1);
end
if (pclm <= 0.0)
begin
$strobe("Fatal: PCLM = %e is not positive.", PCLM);
$finish(1);
end
if (pdits < 0.0)
begin
$strobe("Fatal: PDITS = %e is negative.", pdits);
$finish(1);
end
if (pditsl < 0.0)
begin
$strobe("Fatal: PDITSL = %e is negative.", pditsl);
$finish(1);
end
if (pscbe2 <= 0.0)
$strobe("Warning: PSCBE2 = %e is not positive.", PSCBE2);
if ((vtl != -99.0) && (vtl > 0.0))
begin
if (vtl < 6.0e4)
$strobe("Warning: Thermal velocity VTL = %e may be too small.", vtl);
end
if (xn < 3.0)
begin
$strobe("Warning: back scattering coeff XN = %e is too small. Reset to 3.0", xn);
xn = 3.0;
end
if (rgatemod == 1)
begin
if (rshg <= 0.0)
$strobe("Warning: RSHG should be positive for RGATEMOD = 1.");
end
else if (rgatemod == 2)
begin
if (rshg <= 0.0)
$strobe("Warning: RSHG <= 0.0 for rgateMod = 2.");
else if (xrcrg1 <= 0.0)
$strobe("Warning: XRCRG1 <= 0.0 for rgateMod = 2.");
end
if (rgatemod == 3)
begin
if (rshg <= 0.0)
$strobe("Warning: RSHG should be positive for RGATEMOD = 3.");
else if (xrcrg1 <= 0.0)
$strobe("Warning: XRCRG1 should be positive for RGATEMOD = 3.");
end
if (ngcon < 1.0)
begin
$strobe("Fatal: The parameter NGCON cannot be smaller than one.");
$finish(1);
end
if ((l + xl) <= xgl)
begin
$strobe("Fatal: The parameter XGL must be smaller than Ldrawn+XL.");
$finish(1);
end
if((sa > 0.0) && (sb > 0.0) && ((nf == 1.0) || ((nf > 1.0) && (sd > 0.0))) )
begin
if (saref <= 0.0)
begin
$strobe("Fatal: SAREF = %e is not positive.",saref);
$finish(1);
end
if (sbref <= 0.0)
begin
$strobe("Fatal: SBREF = %e is not positive.",sbref);
$finish(1);
end
if (wlod < 0.0)
begin
$strobe("Warning: WLOD = %e is less than 0.",wlod);
wlod = 0.0;
end
if (kvsat < -1.0 )
begin
$strobe("Warning: KVSAT = %e is is too small; Reset to -1.0.",kvsat);
kvsat = -1.0;
end
if (kvsat > 1.0)
begin
$strobe("Warning: KVSAT = %e is too big; Reset to 1.0.",kvsat);
kvsat = 1.0;
end
if (lodk2 <= 0.0)
$strobe("Warning: LODK2 = %e is not positive.",lodk2);
if (lodeta0 <= 0.0)
$strobe("Warning: LODETA0 = %e ih not positive.",lodeta0);
end
if (aigc == -99.0)
aigc = (type == 1) ? 0.43 : 0.31;
if (bigc == -99.0)
bigc = (type == 1) ? 0.054 : 0.024;
if (cigc == -99.0)
cigc = (type == 1) ? 0.075 : 0.03;
if (aigsd == -99.0)
aigsd = (type == 1) ? 0.43 : 0.31;
if (bigsd == -99.0)
bigsd = (type == 1) ? 0.054 : 0.024;
if (cigsd == -99.0)
cigsd = (type == 1) ? 0.075 : 0.03;
if (nigbinv <= 0.0)
begin
$strobe("Fatal: NIGBINV = %e is non-positive.", nigbinv);
$finish(1);
end
if (nigbacc <= 0.0)
begin
$strobe("Fatal: NIGBACC = %e is non-positive.", nigbacc);
$finish(1);
end
if (nigc <= 0.0)
begin
$strobe("Fatal: NIGC = %e is non-positive.", nigc);
$finish(1);
end
if (pigcd <= 0.0)
begin
$strobe("Fatal: PIGCD = %e is non-positive.", pigcd);
$finish(1);
end
if (pbs < 0.1)
begin
pbs = 0.1;
$strobe("Given PBS is less than 0.1. PBS is set to 0.1.");
end
if (pbsws < 0.1)
begin
pbsws = 0.1;
$strobe("Given PBSWS is less than 0.1. PBSWS is set to 0.1.");
end
if (pbswgs < 0.1)
begin
pbswgs = 0.1;
$strobe("Given PBSWGS is less than 0.1. PBSWGS is set to 0.1.");
end
if (pbd < 0.1)
begin
pbd = 0.1;
$strobe("Given PBD is less than 0.1. PBD is set to 0.1.");
end
if (pbswd < 0.1)
begin
pbswd = 0.1;
$strobe("Given PBSWD is less than 0.1. PBSWD is set to 0.1.");
end
if (pbswgd < 0.1)
begin
pbswgd = 0.1;
$strobe("Given PBSWGD is less than 0.1. PBSWGD is set to 0.1.");
end
if (ijthdfwd <= 0.0)
begin
ijthdfwd = 0.1;
$strobe("IJTHDFWD reset to %e.", ijthdfwd);
end
if (ijthsfwd <= 0.0)
begin
ijthsfwd = 0.1;
$strobe("IJTHSFWD reset to %e.", ijthsfwd);
end
if (ijthdrev <= 0.0)
begin
ijthdrev = 0.1;
$strobe("IJTHDREV reset to %e.", ijthdrev);
end
if (ijthsrev <= 0.0)
begin
ijthsrev = 0.1;
$strobe("IJTHSREV reset to %e.", ijthsrev);
end
if ((xjbvd <= 0.0) && (diomod == 2))
begin
xjbvd = 1.0;
$strobe("XJBVD reset to %e.", xjbvd);
end
else if ((xjbvd < 0.0) && (diomod == 0))
begin
xjbvd = 1.0;
$strobe("XJBVD reset to %e.", xjbvd);
end
if (bvd <= 0.0)
begin
bvd = 10.0;
$strobe("BVD reset to %e.\n", bvd);
end
if ((xjbvs <= 0.0) && (diomod == 2))
begin
xjbvs = 1.0;
$strobe("XJBVS reset to %e.\n", xjbvs);
end
else if ((xjbvs < 0.0) && (diomod == 0))
begin
xjbvs = 1.0;
$strobe("XJBVS reset to %e.\n", xjbvs);
end
if (bvs <= 0.0)
begin
bvs = 10.0;
$strobe("BVS reset to %g.\n", bvs);
end
if (gbmin < 1.0e-20)
$strobe("Warning: GBMIN = %e is too small.", gbmin);
if (clc < 0.0)
begin
$strobe("Fatal: CLC = %e is negative.", CLC);
$finish(1);
end
if (noff < 0.1)
$strobe("Warning: NOFF = %e is too small.", noff);
if (voffcv < -0.5)
$strobe("Warning: VOFFCV = %e is too small.", voffcv);
if (moin < 5.0)
$strobe("Warning: MOIN = %e is too small.", moin);
if (moin > 25.0)
$strobe("Warning: MOIN = %e is too large.", moin);
if (ckappas < 0.02)
begin
$strobe("Warning: CKAPPAS = %e is too small.", ckappas);
ckappas = 0.02;
end
if (ckappad < 0.02)
begin
$strobe("Warning: CKAPPAD = %e is too small.", ckappad);
ckappad = 0.02;
end
//***** Oxide capacitances (line 110-111, file b4temp.c) *****//
coxe = epsrox * `EPS0 / toxe;
coxp = epsrox * `EPS0 / toxp;
//***** Overlap capacitances (line 113-129, file b4temp.c) *****//
if (param_cgdo == -99.0)
begin
if (dlc > 0.0)
param_cgdo = dlc * coxe - cgdl ;
else
param_cgdo = 0.6 * xj * coxe;
end
if (param_cgso == -99.0)
begin
if (dlc > 0.0)
param_cgso = dlc * coxe - cgsl ;
else
param_cgso = 0.6 * xj * coxe;
end
if (cgbo == -99.0)
cgbo = 2.0 * dwc * coxe;
tratio = $temperature / tnom;
factor1 = sqrt(`EPSSI / (epsrox * `EPS0) * toxe);
//***** Intrinsic carrier concentration (line 139-141, file b4temp.c) *****//
vtm0 = `KboQ * tnom;
eg0 = 1.16 - 7.02e-4 * tnom * tnom / (tnom + 1108.0);
ni = 1.45e10 * (tnom / 300.15) * sqrt(tnom / 300.15) * exp(21.5565981 - eg0 / (2.0 * vtm0));
vtm = `KboQ * $temperature;
//***** Energy gap (line 145, file b4temp.c) *****//
eg = 1.16 - 7.02e-4 * $temperature * $temperature / ($temperature + 1108.0);
//***** Temperture dependance of Junction diode IV (line 149-191, file b4temp.c) *****//
if ($temperature != tnom)
begin
t0 = eg0 / vtm0 - eg / vtm;
t1 = ln($temperature / tnom);
t2 = t0 + xtis * t1;
t3 = exp(t2 / njs);
jss_temp = jss * t3;
jsws_temp = jsws * t3;
jswgs_temp = jswgs * t3;
t2 = t0 + xtid * t1;
t3 = exp(t2 / njd);
jsd_temp = jsd * t3;
jswd_temp = jswd * t3;
jswgd_temp = jswgd * t3;
end
else
begin
jss_temp = jss;
jsws_temp = jsws;
jswgs_temp = jswgs;
jsd_temp = jsd;
jswd_temp = jswd;
jswgd_temp = jswgd;
end
if (jss_temp < 0.0)
jss_temp = 0.0;
if (jsws_temp < 0.0)
jsws_temp = 0.0;
if (jswgs_temp < 0.0)
jswgs_temp = 0.0;
if (jsd_temp < 0.0)
jsd_temp = 0.0;
if (jswd_temp < 0.0)
jswd_temp = 0.0;
if (jswgd_temp < 0.0)
jswgd_temp = 0.0;
//***** Temperature dependence of D/B and S/B diode capacitance (line 193-278, file b4temp.c) *****//
deltemp = $temperature - tnom;
t0 = tcj * deltemp;
if (t0 >= -1.0)
begin
cjs_temp = cjs *(1.0 + t0);
cjd_temp = cjd *(1.0 + t0);
end
else
begin
if (cjs > 0.0)
begin
cjs_temp = 0.0;
$strobe("Temperature effect has caused CJS to be negative. CJS is clamped to zero.");
end
if (cjd > 0.0)
begin
cjd_temp = 0.0;
$strobe("Temperature effect has caused CJD to be negative. CJD is clamped to zero.\n");
end
end
t0 = tcjsw * deltemp;
if (t0 >= -1.0)
begin
cjsws_temp = cjsws *(1.0 + t0);
cjswd_temp = cjswd *(1.0 + t0);
end
else
begin
if (cjsws > 0.0)
begin
cjsws_temp = 0.0;
$strobe("Temperature effect has caused CJSWS to be negative. CJSWS is clamped to zero.");
end
if (cjswd > 0.0)
begin
cjswd_temp = 0.0;
$strobe("Temperature effect has caused CJSWD to be negative. CJSWD is clamped to zero.");
end
end
t0 = tcjswg * deltemp;
if (t0 >= -1.0)
begin
cjswgs_temp = cjswgs *(1.0 + t0);
cjswgd_temp = cjswgd *(1.0 + t0);
end
else
begin
if (cjswgs > 0.0)
begin
cjswgs_temp = 0.0;
$strobe("Temperature effect has caused CJSWGS to be negative. CJSWGS is clamped to zero.");
end
if (cjswgd > 0.0)
begin
cjswgd_temp = 0.0;
$strobe("Temperature effect has caused CJSWGD to be negative. CJSWGD is clamped to zero.");
end
end
phibs = pbs - tpb * deltemp;
if (phibs < 0.01)
begin
phibs = 0.01;
$strobe("Temperature effect has caused PBS to be less than 0.01. PBS is clamped to 0.01.");
end
phibd = pbd - tpb * deltemp;
if (phibd < 0.01)
begin
phibd = 0.01;
$strobe("Temperature effect has caused PBD to be less than 0.01. PBD is clamped to 0.01.");
end
phibsws = pbsws - tpbsw * deltemp;
if (phibsws <= 0.01)
begin
phibsws = 0.01;
$strobe("Temperature effect has caused PBSWS to be less than 0.01. PBSWS is clamped to 0.01.");
end
phibswd = pbswd - tpbsw * deltemp;
if (phibswd <= 0.01)
begin
phibswd = 0.01;
$strobe("Temperature effect has caused PBSWD to be less than 0.01. PBSWD is clamped to 0.01.");
end
phibswgs = pbswgs - tpbswg * deltemp;
if (phibswgs <= 0.01)
begin
phibswgs = 0.01;
$strobe("Temperature effect has caused PBSWGS to be less than 0.01. PBSWGS is clamped to 0.01.");
end
phibswgd = pbswgd - tpbswg * deltemp;
if (phibswgd <= 0.01)
begin
phibswgd = 0.01;
$strobe("Temperature effect has caused PBSWGD to be less than 0.01. PBSWGD is clamped to 0.01.");
end
//***** Effective length and width (line 362-396, file b4temp.c) *****//
lnew = l + xl ;
wnew = w / nf + xw;
t0 = pow(lnew, lln);
t1 = pow(wnew, lwn);
tmp1 = ll / t0 + lw / t1 + lwl / (t0 * t1);
dl = lint + tmp1;
tmp2 = llc / t0 + lwc / t1 + lwlc / (t0 * t1);
dlc = dlc + tmp2;
dlcig = dlcig + tmp2;
t2 = pow(lnew, wln);
t3 = pow(wnew, wwn);
tmp1 = wl / t2 + ww / t3 + wwl / (t2 * t3);
dw = wint + tmp1;
tmp2 = wlc / t2 + wwc / t3 + wwlc / (t2 * t3);
dwj = dwj + tmp2;
leff = lnew - 2.0 * dl;
weff = wnew - 2.0 * dw;
leffcv = lnew - 2.0 * dlc;
if (leffcv <= 0.0)
begin
$strobe("Fatal: Effective channel length for C-V <= 0");
$finish(1);
end
weffcv = wnew - 2.0 * dwc;
if (weffcv <= 0.0)
begin
$strobe("Fatal: Effective channel width for C-V <= 0");
$finish(1);
end
if (leff <= 1.0e-9)
$strobe("Warning: leff = %e <= 1.0e-9. Recommended leff >= 1e-8.", leff);
if (weff <= 1.0e-9)
$strobe("Warning: weff = %e <= 1.0e-9. Recommended weff >= 1e-7.", weff);
if (leffcv <= 1.0e-9)
$strobe("warning: leff for CV = %e <= 1.0e-9. recommended leffcv >=1e-8 ", leffcv);
if (weffcv <= 1.0e-9)
$strobe("warning: weff for CV = %e <= 1.0e-9. recommended weffcv >= 1e-7 ", weffcv);
//***** weffcj (line 429-437, file b4temp.c) *****//
weffcj = wnew - 2.0 * dwj;
if (weffcj <= 0.0)
begin
$strobe("Fatal: Effective channel width for S/D junctions <= 0.");
$finish(1);
end
//***** Temperature model (line 955-1026, file b4temp.c) *****//
abulkcvfactor = 1.0 + pow((clc / leffcv), cle);
t0 = (tratio - 1.0);
powweffwr = pow(weffcj * 1.0e6, wr) * nf;
t1 = 0.0;
t2 = 0.0;
t3 = 0.0;
t4 = 0.0;
if (tempmod == 0)
begin
ua = ua + ua1 * t0;
ub = ub + ub1 * t0;
uc = uc + uc1 * t0;
vsattemp = vsat - at * t0;
t10 = prt * t0;
if(rdsmod == 1)
begin
/* External Rd(V) */
t1 = rdw + t10;
t2 = rdwmin + t10;
/* External Rs(V) */
t3 = rsw + t10;
t4 = rswmin + t10;
end
/* Internal Rds(V) in IV */
rds0 = (rdsw + t10) * nf / powweffwr;
rdswmin = (rdswmin + t10) * nf / powweffwr;
end
else /* TEMPMOD = 1 */
begin
ua = ua * (1.0 + ua1 * deltemp);
ub = ub * (1.0 + ub1 * deltemp);
uc = uc * (1.0 + uc1 * deltemp);
vsattemp = vsat * (1.0 - at * deltemp);
t10 = 1.0 + prt * deltemp;
if(rdsmod == 1)
begin
/* External Rd(V) */
t1 = rdw * t10;
t2 = rdwmin * t10;
/* External Rs(V) */
t3 = rsw * t10;
t4 = rswmin * t10;
end
/* Internal Rds(V) in IV */
rds0 = rdsw * t10 * nf / powweffwr;
rdswmin = rdswmin * t10 * nf / powweffwr;
end
if (t1 < 0.0)
begin
t1 = 0.0;
$strobe("Warning: rdw at current temperature is negative; set to 0.");
end
if (t2 < 0.0)
begin
t2 = 0.0;
$strobe("Warning: rdwmin at current temperature is negative; set to 0.");
end
rd0 = t1 / powweffwr;
rdwmin = t2 / powweffwr;
if (t3 < 0.0)
begin
t3 = 0.0;
$strobe("Warning: rsw at current temperature is negative; set to 0.");
end
if (t4 < 0.0)
begin
t4 = 0.0;
$strobe("Warning: rswmin at current temperature is negative; set to 0.");
end
rs0 = t3 / powweffwr;
rswmin = t4 / powweffwr;
if (u0 > 1.0)
u0 = u0 / 1.0e4;
u0temp = u0 * pow(tratio, ute);
if (u0temp <= 0.0)
begin
$strobe("Fatal: U0 at current temperature = %e is not positive.", u0temp);
$finish(1);
end
if (eu < 0.0)
begin
eu = 0.0;
$strobe("Warning: EU has been negative; reset to 0.0.");
end
if (vsattemp <= 0.0)
begin
$strobe("Fatal: VSAT at current temperature = %e is not positive.", vsattemp);
$finish(1);
end
if (vsattemp < 1.0e3)
$strobe("Warning: VSAT at current temperature = %e may be too small.", vsattemp);
if (rds0 < 0.0)
begin
$strobe("Warning: Rds at current temperature = %e is negative. Set to zero.", rds0);
rds0 = 0.0;
end
if (rdsw < 0.0)
begin
$strobe("Warning: rdsw = %e is negative. Set to zero.", rdsw);
rdsw = 0.0;
rds0 = 0.0;
end
if (rdswmin < 0.0)
begin
$strobe("Warning: rdswmin at current temperature = %e is negative. Set to zero.", rdswmin);
rdswmin = 0.0;
end
if (b1 == -weff)
begin
$strobe("Fatal: (B1 + weff) = 0 causing divided-by-zero.");
$finish(1);
end
if (abs(1.0e-6 / (b1 + weff)) > 10.0)
$strobe("Warning: (B1 + weff) may be too small.");
//***** Source End Velocity Limit (line 1024-1034, file b4temp.c) *****//
if ((vtl != -99.0) && (vtl > 0.0))
begin
if (lc < 0.0)
lc = 0.0;
t0 = leff / (xn * leff + lc);
tfactor = (1.0 - t0) / (1.0 + t0 );
end
//***** Overlap capacitances (line 1034-1040, file b4temp.c) *****//
if (cf == -99.0)
cf = 2.0 * epsrox * `EPS0 / `PI * ln(1.0 + 0.4e-6 / toxe);
param_cgdo = (param_cgdo + cf) * weffcv;
param_cgso = (param_cgso + cf) * weffcv;
cgbo = cgbo * leffcv * nf;
//***** Test on ndep and gamma1 (line 1043-1045, file b4temp.c) *****//
if (ndep == -99.0 && gamma1 != -99.0)
begin
t0 = gamma1 * coxe;
ndep = 3.01248e22 * t0 * t0;
end
else if (ndep != -99.0 && gamma1 == -99.0)
gamma1 = 5.753e-12 * sqrt(ndep) / coxe;
else if (ndep == -99.0 && gamma1 == -99.0)
begin
ndep = 1.0e17;
gamma1 = 5.753e-12 * sqrt(ndep) / coxe;
end
if (ndep <= 0.0)
begin
$strobe("Fatal: NDEP = %e is not positive.", ndep);
$finish(1);
end
if (ndep <= 1.0e12)
$strobe("Warning: NDEP = %e may be too small.", ndep);
else if (ndep >= 1.0e21)
$strobe("Warning: NDEP = %e may be too large.", ndep);
if (gamma2 == -99.0)
gamma2 = 5.753e-12 * sqrt(nsub) / coxe;
//***** Potential surface (line 1048-1049, file b4temp.c) *****//
phi = vtm0 * ln(ndep / ni) + phin + 0.4;
sqrtphi = sqrt(phi);
//***** Calculation of some intermediaries (line 1054-1091, file b4temp.c) *****//
xdep0 = sqrt(2.0 * `EPSSI / (`Charge_q * ndep * 1.0e6)) * sqrtphi;
litl = sqrt(3.0 * xj * toxe);
vbi = vtm0 * ln(nsd * ndep / (ni * ni));
if (ngate > 0.0)
vfbsd = vtm0 * ln(ngate / nsd);
else
vfbsd = 0.0;
cdep0 = sqrt(`Charge_q * `EPSSI * ndep * 1.0e6 / 2.0 / phi);
toxratio = exp(ntox * ln(toxref / toxe)) / toxe / toxe;
toxratioedge = exp(ntox * ln(toxref / (toxe * poxedge))) / toxe / toxe / poxedge / poxedge;
mstar = 0.5 + atan(minv) / `PI;
voffcbn = voff + voffl / leff;
ldeb = sqrt(`EPSSI * vtm0 / (`Charge_q * ndep * 1.0e6)) / 3.0;
acde = acde * pow((ndep / 2.0e16), -0.25);
if (capmod ==2)
begin
if (acde < 0.1)
$strobe("Warning: ACDE = %e is too small.", acde);
if (acde > 1.6)
$strobe("Warning: ACDE = %e is too large.", acde);
end
//***** Calculation of K1 and K2 (line 1101-1149, file b4temp.c) *****//
if (k1 != -99.0 || k2 != -99.0)
begin
if (k1 == -99.0)
begin
$strobe("Warning: K1 should be specified with K2.");
k1 = 0.53;
end
if (k2 == -99.0)
begin
$strobe("Warning: K2 should be specified with K1.");
k2 = -0.0186;
end
end
else
begin
if (vbx == -99.0)
vbx = phi - 7.7348e-4 * ndep * xt * xt;
if (vbx > 0.0)
vbx = -vbx;
if (vbm > 0.0)
vbm = -vbm;
t0 = gamma1 - gamma2;
t1 = sqrt(phi - vbx) - sqrtphi;
t2 = sqrt(phi * (phi - vbm)) - phi;
k2 = t0 * t1 / (2.0 * t2 + vbm);
k1 = gamma2 - 2.0 * k2 * sqrt(phi - vbm);
end
//***** Calculation of vbsc (line 1151-1161, file b4temp.c) *****//
if (k2 < 0.0)
begin
t0 = 0.5 * k1 / k2;
vbsc = 0.9 * (phi - t0 * t0);
if (vbsc > -3.0)
vbsc = -3.0;
else if (vbsc < -30.0)
vbsc = -30.0;
end
else
vbsc = -30.0;
if (vbsc > vbm)
vbsc = vbm;
//***** Flat-band voltage (line 1165-1179, file b4temp.c) *****//
if (vfb == -99.0)
begin
if (vth0 != -99.0)
vfb = type * vth0 - phi - k1 * sqrtphi;
else
vfb = -1.0;
end
//***** Flat-band voltage (line 1165-1179, file b4temp.c) *****//
if (vth0 == -99.0)
vth0 = type * (vfb + phi + k1 * sqrtphi);
//***** Calculation of intermediaries (line 1181-1185, file b4temp.c) *****//
k1ox = k1 * toxe / toxm;
k2ox = k2 * toxe / toxm;
//***** Calculation of vfbzb (line 1186-1265, file b4temp.c) *****//
t3 = type * vth0 - vfb - phi;
t4 = t3 + t3;
t5 = 2.5 * t3;
vtfbphi1 = (type == 1) ? t4 : t5;
if (vtfbphi1 < 0.0)
vtfbphi1 = 0.0;
vtfbphi2 = 4.0 * t3;
if (vtfbphi2 < 0.0)
vtfbphi2 = 0.0;
tmp = sqrt(`EPSSI / (epsrox * `EPS0) * toxe * xdep0);
t0 = dsub * leff / tmp;
if (t0 < `EXP_THRESHOLD)
begin
t1 = exp(t0);
t2 = t1 - 1.0;
t3 = t2 * t2;
t4 = t3 + 2.0 * t1 * `MIN_EXP;
theta0vb0 = t1 / t4;
end
else
theta0vb0 = 1.0 / (`MAX_EXP - 2.0);
t0 = drout * leff / tmp;
if (t0 < `EXP_THRESHOLD)
begin
t1 = exp(t0);
t2 = t1 - 1.0;
t3 = t2 * t2;
t4 = t3 + 2.0 * t1 * `MIN_EXP;
t5 = t1 / t4;
end
else
t5 = 1.0 / (`MAX_EXP - 2.0); /* 3.0 * `MIN_EXP omitted */
thetarout = pdibl1 * t5 + pdibl2;
tmp = sqrt(xdep0);
tmp1 = vbi - phi;
tmp2 = factor1 * tmp;
t0 = dvt1w * weff * leff / tmp2;
if (t0 < `EXP_THRESHOLD)
begin
t1 = exp(t0);
t2 = t1 - 1.0;
t3 = t2 * t2;
t4 = t3 + 2.0 * t1 * `MIN_EXP;
t8 = t1 / t4;
end
else
t8 = 1.0 / (`MAX_EXP - 2.0);
t0 = dvt0w * t8;
t8 = t0 * tmp1;
t0 = dvt1 * leff / tmp2;
if (t0 < `EXP_THRESHOLD)
begin
t1 = exp(t0);
t2 = t1 - 1.0;
t3 = t2 * t2;
t4 = t3 + 2.0 * t1 * `MIN_EXP;
t9 = t1 / t4;
end
else
t9 = 1.0 / (`MAX_EXP - 2.0);
t9 = dvt0 * t9 * tmp1;
t4 = toxe * phi / (weff + w0);
t0 = sqrt(1.0 + lpe0 / leff);
t5 = k1ox * (t0 - 1.0) * sqrtphi + (kt1 + kt1l / leff) * (tratio - 1.0);
tmp3 = type * vth0 - t8 - t9 + k3 * t4 + t5;
vfbzb = tmp3 - phi - k1 * sqrtphi;
//***** Stress Effect (line 1267-1366, file b4temp.c) *****//
ldrn = l;
t0 = pow(lnew, llodku0);
w_tmp = wnew + wlod;
t1 = pow(w_tmp, wlodku0);
tmp1 = lku0 / t0 + wku0 / t1 + pku0 / (t0 * t1);
ku0 = 1.0 + tmp1;
t0 = pow(lnew, llodvth);
t1 = pow(w_tmp, wlodvth);
tmp1 = lkvth0 / t0 + wkvth0 / t1 + pkvth0 / (t0 * t1);
kvth0 = 1.0 + tmp1;
kvth0 = sqrt(kvth0*kvth0 + `DELTA);
t0 = (tratio - 1.0);
ku0temp = ku0 * (1.0 + tku0 *t0) + `DELTA;
inv_saref = 1.0/(saref + 0.5 * ldrn);
inv_sbref = 1.0/(sbref + 0.5 * ldrn);
inv_od_ref = inv_saref + inv_sbref;
rho_ref = KU0 / ku0temp * inv_od_ref;
if ((sa > 0.0) && (sb > 0.0) && ((nf == 1.0) || ((nf > 1.0) && (sd > 0.0))))
begin
inv_sa = 0;
inv_sb = 0;
for(i = 0; i < nf; i = i+1)
begin
t0 = 1.0 / nf / (sa + 0.5*ldrn + i * (sd +ldrn));
t1 = 1.0 / nf / (sb + 0.5*ldrn + i * (sd +ldrn));
inv_sa = inv_sa + t0;
inv_sb = inv_sb + t1;
end
inv_odeff = inv_sa + inv_sb;
rho = KU0 / ku0temp * inv_odeff;
t0 = (1.0 + rho)/(1.0 + rho_ref);
u0temp = u0temp * t0;
t1 = (1.0 + kvsat * rho)/(1.0 + kvsat * rho_ref);
vsattemp = vsattemp * t1;
od_offset = inv_odeff - inv_od_ref;
dvth0_lod = KVTH0 / kvth0 * od_offset;
dk2_lod = stk2 / pow(kvth0, lodk2) * od_offset;
deta0_lod = steta0 / pow(kvth0, lodeta0) * od_offset;
vth0 = vth0 + dvth0_lod;
if (VFB == -99.0 && VTH0 == -99.0)
vfb = -1.0;
else
vfb = vfb + type * dvth0_lod;
vfbzb = vfbzb + type * dvth0_lod;
t3 = type * vth0 - vfb - phi;
t4 = t3 + t3;
t5 = 2.5 * t3;
vtfbphi1 = (type == 1) ? t4 : t5;
if (vtfbphi1 < 0.0)
vtfbphi1 = 0.0;
vtfbphi2 = 4.0 * t3;
if (vtfbphi2 < 0.0)
vtfbphi2 = 0.0;
k2 = k2 + dk2_lod;
if (k2 < 0.0)
begin
t0 = 0.5 * k1 / k2;
vbsc = 0.9 * (phi - t0 * t0);
if (vbsc > -3.0)
vbsc = -3.0;
else if (vbsc < -30.0)
vbsc = -30.0;
end
else
vbsc = -30.0;
if (vbsc > vbm)
vbsc = vbm;
k2ox = k2 * toxe / toxm;
eta0 = eta0 + deta0_lod;
end
//*********** HF model parameters (line 1371-1392, file b4temp.c) *****************//
if (rbodymod == 1.0)
begin
if (rbdb < 1.0e-3)
grbdb = 1.0e3;
else
grbdb = gbmin + 1.0 / rbdb;
if (rbpb < 1.0e-3)
grbpb = 1.0e3;
else
grbpb = gbmin + 1.0 / rbpb;
if (rbps < 1.0e-3)
grbps = 1.0e3;
else
grbps = gbmin + 1.0 / rbps;
if (rbsb < 1.0e-3)
grbsb = 1.0e3;
else
grbsb = gbmin + 1.0 / rbsb;
if (rbpd < 1.0e-3)
grbpd = 1.0e3;
else
grbpd = gbmin + 1.0 / rbpd;
end
//*********** Process geomertry dependent parasitics (line 1396-1452, file b4temp.c) *****************//
grgeltd = rshg * (xgw + weffcj / 3.0 / ngcon) / (ngcon * nf * (lnew - xgl));
if (grgeltd > 0.0)
grgeltd = 1.0 / grgeltd;
else
begin
grgeltd = 1.0e3;
if (rgatemod != 0)
$strobe("Warning: The gate conductance reset to 1.0e3 ohms.");
end
dmcgeff = dmcg - dmcgt;
dmcieff = dmci;
dmdgeff = dmdg - dmcgt;
if (ps > 0.0)
begin
if (permod == 0)
pseff = ps;
else
pseff = ps - weffcj * nf;
end
else
pseff = get_ps(nf, geomod, imin, weffcj, dmcgeff, dmcieff, dmdgeff);
if (pd > 0.0)
begin
if (permod == 0)
pdeff = pd;
else
pdeff = pd - weffcj * nf;
end
else
pdeff = get_pd(nf, geomod, imin, weffcj, dmcgeff, dmcieff, dmdgeff);
if (as > 0.0)
aseff = as;
else
aseff = get_as(nf, geomod, imin, weffcj, dmcgeff, dmcieff, dmdgeff);
if (ad > 0.0)
adeff = ad;
else
adeff = get_ad(nf, geomod, imin, weffcj, dmcgeff, dmcieff, dmdgeff);
//*********** Processing S/D resistance and conductance below (line 1453-1516, file b4temp.c) *****************//
if (nrs != -99.0)
gsdiff = rsh * nrs;
else if (rgeomod > 0)
gsdiff = get_rtot(nf, geomod, rgeomod, imin, weffcj, rsh, dmcgeff, dmcieff, dmdgeff, 1);
else
gsdiff = 0.0;
if (gsdiff > 0.0)
gsdiff = 1.0 / gsdiff;
else
begin
gsdiff = 1.0e3; /* mho */
$strobe ("Warning: source conductance reset to 1.0e3 mho.");
end
if (nrd != -99.0)
gddiff = rsh * nrd;
else if (rgeomod > 0)
gddiff = get_rtot(nf, geomod, rgeomod, imin, weffcj, rsh, dmcgeff, dmcieff, dmdgeff, 0);
else
gddiff = 0.0;
if (gddiff > 0.0)
gddiff = 1.0 / gddiff;
else
begin
gddiff = 1.0e3; /* mho */
$strobe ("Warning: drain conductance reset to 1.0e3 mho.");
end
aechvb = (type == 1) ? 4.97232e-7 : 3.42537e-7;
bechvb = (type == 1) ? 7.45669e11 : 1.16645e12;
aechvbedge = aechvb * weff * dlcig * toxratioedge;
bechvbedge = -bechvb * toxe * poxedge;
aechvb = aechvb * weff * leff * toxratio;
bechvb = bechvb * -toxe;
//*********** Diode model intermediaries calculation (line 1519-1635, file b4temp.c) *****************//
nvtms = vtm * njs;
if ((aseff <= 0.0) && (pseff <= 0.0))
isbs = 1.0e-14;
else
isbs = aseff * jss_temp + pseff * jsws_temp + weffcj * nf * jswgs_temp;
if (isbs > 0.0)
begin
case(diomod)
0:
begin
if ((bvs / nvtms) > `EXP_THRESHOLD)
xexpbvs = xjbvs * `MIN_EXP;
else
xexpbvs = xjbvs * exp(-bvs / nvtms);
end
1:
begin
vjsmfwd = get_vjm(nvtms, ijthsfwd, isbs, 0.0);
ivjsmfwd = isbs * exp(vjsmfwd / nvtms);
end
2:
begin
if ((bvs / nvtms) > `EXP_THRESHOLD)
begin
xexpbvs = xjbvs * `MIN_EXP;
tmp = `MIN_EXP;
end
else
begin
xexpbvs = exp(-bvs / nvtms);
tmp = xexpbvs;
xexpbvs = xexpbvs * xjbvs;
end
vjsmfwd = get_vjm(nvtms, ijthsfwd, isbs, xexpbvs);
t0 = exp(vjsmfwd / nvtms);
ivjsmfwd = isbs * (t0 - xexpbvs / t0 + xexpbvs - 1.0);
sslpfwd = isbs * (t0 + xexpbvs / t0) / nvtms;
t2 = ijthsrev / isbs;
if (t2 < 1.0)
begin
t2 = 10.0;
$strobe("Warning: ijthsrev too small and set to 10 times isbsat.\n");
end
vjsmrev = -bvs - nvtms * ln((t2 - 1.0) / xjbvs);
t1 = xjbvs * exp(-(bvs + vjsmrev) / nvtms);
ivjsmrev = isbs * (1.0 + t1);
sslprev = -isbs * t1 / nvtms;
end
default: $strobe("Specified diomod = %d not matched", diomod);
endcase
end
nvtmd = vtm * njd;
if ((adeff <= 0.0) && (pdeff <= 0.0))
isbd = 1.0e-14;
else
isbd = adeff * jsd_temp + pdeff * jswd_temp + weffcj * nf * jswgd_temp;
if (isbd > 0.0)
begin
case(diomod)
0:
begin
if ((bvd / nvtmd) > `EXP_THRESHOLD)
xexpbvd = xjbvd * `MIN_EXP;
else
xexpbvd = xjbvd * exp(-bvd / nvtmd);
end
1:
begin
vjdmfwd = get_vjm(nvtmd, ijthdfwd, isbd, 0.0);
ivjdmfwd = isbd * exp(vjdmfwd / nvtmd);
end
2:
begin
if ((bvd / nvtmd) > `EXP_THRESHOLD)
begin
xexpbvd = xjbvd * `MIN_EXP;
tmp = `MIN_EXP;
end
else
begin
xexpbvd = exp(-bvd / nvtmd);
tmp = xexpbvd;
xexpbvd = xexpbvd * xjbvd;
end
vjsmfwd = get_vjm(nvtmd, ijthdfwd, isbd, xexpbvd);
t0 = exp(vjdmfwd / nvtmd);
ivjdmfwd = isbd * (t0 - xexpbvd / t0 + xexpbvd - 1.0);
dslpfwd = isbd * (t0 + xexpbvd / t0) / nvtmd;
t2 = ijthdrev / isbd;
if (t2 < 1.0)
begin
t2 = 10.0;
$strobe("Warning: ijthdrev too small and set to 10 times idbsat.\n");
end
vjdmrev = -bvd - nvtmd * ln((t2 - 1.0) / xjbvd);
t1 = xjbvd * exp(-(bvd + vjdmrev) / nvtmd);
ivjdmrev = isbd * (1.0 + t1);
dslprev = -isbd * t1 / nvtmd;
end
default: $strobe("Specified diomod = %d not matched", diomod);
endcase
end
end
//*********************************//
//****** End of initial_step ******//
//*********************************//
//****** Calculation of all equations to define all currents ******//
//****** Definition of the tensions ******//
vds = type * V(drainp, sourcep);
vgs = type * V(gatep, sourcep);
vbs = type * V(bulkp, sourcep);
vges = type * V(gate, sourcep);
vgms = type * V(gatem, sourcep);
vsbs = type * V(sourceb, sourcep);
vdbs = type * V(drainb, sourcep);
vses = type * V(source, sourcep);
vdes = type * V(drain, sourcep);
vbes = type * V(bulk, sourcep);
vgd = vgs - vds;
vbd = vbs - vds;
vgb = vgs - vbs;
vded = vdes - vds;
vgeg = vges - vgs;
vgmg = vgms - vgs;
vgmb = vgms - vbs;
vgegm = vgeg - vgmg;
vbeb = vbes - vbs;
vdbd = vdbs - vds;
vbesb = vbes - vsbs;
vbedb = vbes - vdbs;
vbsb = vbs - vsbs;
vbdb = vbs - vdbs;
//***** Source/drain junction diode DC model (line 634-829, file b4ld.c) *****//
vbs_jct = (rbodymod == 0) ? vbs : vsbs;
vbd_jct = (rbodymod == 0) ? vbd : vdbd;
nvtms = vtm * njs;
if ((aseff <= 0.0) && (pseff <= 0.0))
isbs = 1.0e-14;
else
isbs = aseff * jss_temp + pseff * jsws_temp + weffcj * nf * jswgs_temp;
if (isbs <= 0.0)
cbs = gmin * vbs_jct;
else
begin
case(diomod)
0:
begin
evbs = exp(vbs_jct / nvtms);
t1 = xjbvs * exp(-(bvs + vbs_jct) / nvtms);
cbs = isbs * (evbs + xexpbvs - t1 - 1.0) + gmin * vbs_jct;
end
1:
begin
t2 = vbs_jct / nvtms;
if (t2 < -`EXP_THRESHOLD)
cbs = isbs * (`MIN_EXP - 1.0) + gmin * vbs_jct;
else if (vbs_jct <= vjsmfwd)
begin
evbs = exp(t2);
cbs = isbs * (evbs - 1.0) + gmin * vbs_jct;
end
else
begin
t0 = ivjsmfwd / nvtms;
cbs = ivjsmfwd - isbs + t0 * (vbs_jct - vjsmfwd) + gmin * vbs_jct;
end
end
2:
begin
if (vbs_jct < vjsmrev)
begin
t0 = vbs_jct / nvtms;
if (t0 < -`EXP_THRESHOLD)
evbs = `MIN_EXP;
else
evbs = exp(t0);
t1 = evbs - 1.0;
t2 = ivjsmrev + sslprev * (vbs_jct - vjsmrev);
cbs = t1 * t2 + gmin * vbs_jct;
end
else if (vbs_jct <= vjsmfwd)
begin
t0 = vbs_jct / nvtms;
if (t0 < -`EXP_THRESHOLD)
evbs = `MIN_EXP;
else
evbs = exp(t0);
t3 = (bvs + vbs_jct) / nvtms;
if (t1 > `EXP_THRESHOLD)
t2 = `MIN_EXP;
else
t2 = exp(-t1);
cbs = isbs * (evbs + xexpbvs - 1.0 - xjbvs * t2) + gmin * vbs_jct;
end
else
cbs = ivjsmfwd + sslpfwd * (vbs_jct - vjsmfwd) + gmin * vbs_jct;
end
endcase
end
nvtmd = vtm * njd;
if ((adeff <= 0.0) && (pdeff <= 0.0))
isbd = 1.0e-14;
else
isbd = adeff * jsd_temp + pdeff * jswd_temp + weffcj * nf * jswgd_temp;
if (isbd <= 0.0)
cbd = gmin * vbd_jct;
else
begin
case(diomod)
0:
begin
evbd = exp(vbd_jct / nvtmd);
t1 = xjbvd * exp(-(bvd + vbd_jct) / nvtmd);
cbd = isbd * (evbd + xexpbvd - t1 - 1.0) + gmin * vbd_jct;
end
1:
begin
t2 = vbd_jct / nvtmd;
if (t2 < -`EXP_THRESHOLD)
begin
cbd = isbd * (`MIN_EXP - 1.0) + gmin * vbd_jct;
end
else if (vbd_jct <= vjdmfwd)
begin
evbd = exp(t2);
cbd = isbd * (evbd - 1.0) + gmin * vbd_jct;
end
else
begin
t0 = ivjdmfwd / nvtmd;
cbd = ivjdmfwd - isbd + t0 * (vbd_jct - vjdmfwd) + gmin * vbd_jct;
end
end
2:
begin
if (vbd_jct < vjdmrev)
begin
t0 = vbd_jct / nvtmd;
if (t0 < -`EXP_THRESHOLD)
evbd = `MIN_EXP;
else
evbd = exp(t0);
t1 = evbd - 1.0;
t2 = ivjdmrev + dslprev * (vbd_jct - vjdmrev);
cbd = t1 * t2 + gmin * vbd_jct;
end
else if (vbd_jct <= vjdmfwd)
begin
t0 = vbd_jct / nvtmd;
if (t0 < -`EXP_THRESHOLD)
evbd = `MIN_EXP;
else
evbd = exp(t0);
t1 = (bvd + vbd_jct) / nvtmd;
if (t1 > `EXP_THRESHOLD)
t2 = `MIN_EXP;
else
t2 = exp(-t1);
cbd = isbd * (evbd + xexpbvd - 1.0 - xjbvd * t2) + gmin * vbd_jct;
end
else
cbd = ivjdmfwd + dslpfwd * (vbd_jct - vjdmfwd) + gmin * vbd_jct;
end
endcase
end
//***** Mode choice (line 831-844, file b4ld.c) *****//
if (vds >= 0.0)
begin
mode = 1;
Vds = vds;
Vbs = vbs;
end
else
begin
mode = -1;
Vds = -vds;
Vbs = vbd;
end
//***** Effective Vbs (line 846-863, file b4ld.c) *****//
t0 = Vbs - vbsc - 0.001;
t1 = sqrt(t0 * t0 - 0.004 * vbsc);
if (t0 >= 0.0)
vbseff = vbsc + 0.5 * (t0 + t1);
else
begin
t2 = -0.002 / (t1 - t0);
vbseff = vbsc * (1.0 + t2);
end
// Correction to forward body bias
t9 = 0.95 * phi;
t0 = t9 - vbseff - 0.001;
t1 = sqrt(t0 * t0 + 0.004 * t9);
vbseff = t9 - 0.5 * (t0 + t1);
//***** Calculation of phis (line 865-867, file b4ld.c) *****//
phis = phi - vbseff;
sqrtphis = sqrt(phis);
//***** Threshold Voltage (line 878-969, file b4ld.c) *****//
xdep = xdep0 * sqrtphis / sqrt(phi);
t3 = sqrt(xdep);
v0 = vbi - phi;
t0 = dvt2 * vbseff;
if (t0 >= - 0.5)
begin
t1 = 1.0 + t0;
t2 = dvt2;
end
else
begin
t4 = 1.0 / (3.0 + 8.0 * t0);
t1 = (1.0 + 3.0 * t0) * t4;
t2 = dvt2 * t4 * t4;
end
lt1 = factor1 * t3 * t1;
t0 = dvt2w * vbseff;
if (t0 >= - 0.5)
begin
t1 = 1.0 + t0;
t2 = dvt2w;
end
else
begin
t4 = 1.0 / (3.0 + 8.0 * t0);
t1 = (1.0 + 3.0 * t0) * t4;
t2 = dvt2w * t4 * t4;
end
ltw = factor1 * t3 * t1;
t0 = dvt1 * leff / lt1;
if (t0 < `EXP_THRESHOLD)
begin
t1 = exp(t0);
t2 = t1 - 1.0;
t3 = t2 * t2;
t4 = t3 + 2.0 * t1 * `MIN_EXP;
theta0 = t1 / t4;
end
else
theta0 = 1.0 / (`MAX_EXP - 2.0); /* 3.0 * `MIN_EXP omitted */
thetavth = dvt0 * theta0;
delt_vth = thetavth * v0;
t0 = dvt1w * weff * leff / ltw;
if (t0 < `EXP_THRESHOLD)
begin
t1 = exp(t0);
t2 = t1 - 1.0;
t3 = t2 * t2;
t4 = t3 + 2.0 * t1 * `MIN_EXP;
t5 = t1 / t4;
end
else
t5 = 1.0 / (`MAX_EXP - 2.0); /* 3.0 * `MIN_EXP omitted */
t0 = dvt0w * t5;
t2 = t0 * v0;
tratio = $temperature / tnom - 1.0;
t0 = sqrt(1.0 + lpe0 / leff);
t1 = k1ox * (t0 - 1.0) * sqrtphi + (kt1 + kt1l / leff + kt2 * vbseff) * tratio;
vth_narroww = toxe * phi / (weff + w0);
t3 = eta0 + etab * vbseff;
if (t3 < 1.0e-4)
begin
t9 = 1.0 / (3.0 - 2.0e4 * t3);
t3 = (2.0e-4 - t3) * t9;
t4 = t9 * t9;
end
else
t4 = 1.0;
ddibl_sft_dvd = t3 * theta0vb0;
dibl_sft = ddibl_sft_dvd * Vds;
lpe_vb = sqrt(1.0 + lpeb / leff);
vth = type * vth0 + (k1ox * sqrtphis - k1 * sqrt(phi)) * lpe_vb - k2ox
* vbseff - delt_vth - t2 + (k3 + k3b * vbseff) * vth_narroww + t1 - dibl_sft;
//***** Swing factor (line 978-998, file b4ld.c) *****//
tmp1 = `EPSSI / xdep;
tmp2 = nfactor * tmp1;
tmp3 = cdsc + cdscb * vbseff + cdscd * Vds;
tmp4 = (tmp2 + tmp3 * theta0 + cit) / coxe;
if (tmp4 >= -0.5)
n = 1.0 + tmp4;
else
begin
t0 = 1.0 / (3.0 + 8.0 * tmp4);
n = (1.0 + 3.0 * tmp4) * t0;
end
//***** Vth correction for Pocket Implant (line 1002-1024, file b4ld.c) *****//
if (dvtp0 > 0.0)
begin
t0 = -dvtp1 * Vds;
if (t0 < -`EXP_THRESHOLD)
t2 = `MIN_EXP;
else
t2 = exp(t0);
t3 = leff + dvtp0 * (1.0 + t2);
t4 = vtm * ln(leff / t3);
vth = vth - n * t4;
end
//***** Poly Gate Si Depletion Effect (line 1028 & 4584-4612, file b4ld.c) *****//
t0 = vfb + phi;
if ((ngate > 1.0e18) && (ngate < 1.0e25) && (vgs > t0))
begin
t1 = 1.0e6 * `Charge * `EPSSI * ngate / (coxe * coxe);
t8 = vgs - t0;
t4 = sqrt(1.0 + 2.0 * t8 / t1);
t2 = 2.0 * t8 / (t4 + 1.0);
t3 = 0.5 * t2 * t2 / t1;
t7 = 1.12 - t3 - 0.05;
t6 = sqrt(t7 * t7 + 0.224);
t5 = 1.12 - 0.5 * (t7 + t6);
vgs_eff = vgs - t5;
end
else
vgs_eff = vgs;
if ((ngate > 1.0e18) && (ngate < 1.0e25) && (vgd > t0))
begin
t1 = 1.0e6 * `Charge * `EPSSI * ngate / (coxe * coxe);
t8 = vgd - t0;
t4 = sqrt(1.0 + 2.0 * t8 / t1);
t2 = 2.0 * t8 / (t4 + 1.0);
t3 = 0.5 * t2 * t2 / t1;
t7 = 1.12 - t3 - 0.05;
t6 = sqrt(t7 * t7 + 0.224);
t5 = 1.12 - 0.5 * (t7 + t6);
vgd_eff = vgd - t5;
end
else
vgd_eff = vgd;
if(mode > 0)
Vgs_eff = vgs_eff;
else
Vgs_eff = vgd_eff;
vgst = Vgs_eff - vth;
//***** Calculation of vgsteff (line 1051-1109, file b4ld.c) *****//
t0 = n * vtm;
t1 = mstar * vgst;
t2 = t1 / t0;
if (t2 > `EXP_THRESHOLD)
t10 = t1;
else if (t2 < -`EXP_THRESHOLD)
begin
t10 = vtm * ln(1.0 + `MIN_EXP);
t10 = t10 * n;
end
else
begin
expvgst = exp(t2);
t3 = vtm * ln(1.0 + expvgst);
t10 = n * t3;
end
t1 = voffcbn - (1.0 - mstar) * vgst;
t2 = t1 / t0;
if (t2 < -`EXP_THRESHOLD)
begin
t3 = coxe * `MIN_EXP / cdep0;
t9 = mstar + t3 * n;
end
else if (t2 > `EXP_THRESHOLD)
begin
t3 = coxe * `MAX_EXP / cdep0;
t9 = mstar + t3 * n;
end
else
begin
expvgst = exp(t2);
t3 = coxe / cdep0;
t4 = t3 * expvgst;
t5 = t1 * t4 / t0;
t9 = mstar + n * t4;
end
vgsteff = t10 / t9;
//***** Effective Channel Geometry (line 1111-1123, file b4ld.c) *****//
t9 = sqrtphis - sqrt(phi);
Weff = weff - 2.0 * (dwg * vgsteff + dwb * t9);
if (Weff < 2.0e-8) /* to avoid the discontinuity problem due to Weff */
begin
t0 = 1.0 / (6.0e-8 - 2.0 * Weff);
Weff = 2.0e-8 * (4.0e-8 - Weff) * t0;
end
//***** Source/Drain Resistance (line 1126-1149, file b4ld.c) *****//
if (rdsmod == 1)
rds = 0.0;
else
begin
t0 = 1.0 + prwg * vgsteff;
t1 = prwb * t9;
t2 = 1.0 / t0 + t1;
t3 = t2 + sqrt(t2 * t2 + 0.01);
t4 = rds0 * 0.5;
rds = rdswmin + t3 * t4;
end
//***** Bulk Charge Effect (line 1151-1205, file b4ld.c) *****//
t9 = 0.5 * k1ox * lpe_vb / sqrtphis;
t1 = t9 + k2ox - k3b * vth_narroww;
t9 = sqrt(xj * xdep);
tmp1 = leff + 2.0 * t9;
t5 = leff / tmp1;
tmp2 = a0 * t5;
tmp3 = weff + b1;
tmp4 = b0 / tmp3;
t2 = tmp2 + tmp4;
t6 = t5 * t5;
t7 = t5 * t6;
abulk0 = 1.0 + t1 * t2;
t8 = ags * a0 * t7;
dabulk_dvg = -t1 * t8;
abulk = abulk0 + dabulk_dvg * vgsteff;
if (abulk0 < 0.1) /* added to avoid the problems caused by abulk0 */
begin
t9 = 1.0 / (3.0 - 20.0 * abulk0);
abulk0 = (0.2 - abulk0) * t9;
end
if (abulk < 0.1)
begin
t9 = 1.0 / (3.0 - 20.0 * abulk);
abulk = (0.2 - abulk) * t9;
end
t2 = keta * vbseff;
if (t2 >= -0.9)
t0 = 1.0 / (1.0 + t2);
else
begin
t1 = 1.0 / (0.8 + t2);
t0 = (17.0 + 20.0 * t2) * t1;
end
abulk = abulk * t0;
abulk0 = abulk0 * t0;
//***** Effective Mobility (line 1207-1255, file b4ld.c) *****//
if (mobmod == 0)
begin
t0 = vgsteff + vth + vth;
t2 = ua + uc * vbseff;
t3 = t0 / toxe;
t5 = t3 * (t2 + ub * t3);
end
else if (mobmod == 1)
begin
t0 = vgsteff + vth + vth;
t2 = 1.0 + uc * vbseff;
t3 = t0 / toxe;
t4 = t3 * (ua + ub * t3);
t5 = t4 * t2;
end
else
begin
t0 = (vgsteff + vtfbphi1) / toxe;
t1 = exp(eu * ln(t0));
t2 = ua + uc * vbseff;
t5 = t1 * t2;
end
if (t5 >= -0.8)
denomi = 1.0 + t5;
else
begin
t9 = 1.0 / (7.0 + 10.0 * t5);
denomi = (0.6 + t5) * t9;
end
ueff = u0temp / denomi;
//***** Saturation Voltage (line 1257-1357, file b4ld.c) *****//
wvcox = Weff * vsattemp * coxe;
wvcoxrds = wvcox * rds;
esat = 2.0 * vsattemp / ueff;
esatl = esat * leff;
t0 = -esatl /ueff;
if (a1 == 0.0)
Lambda = a2;
else if (a1 > 0.0)
begin
t0 = 1.0 - a2;
t1 = t0 - a1 * vgsteff - 0.0001;
t2 = sqrt(t1 * t1 + 0.0004 * t0);
Lambda = a2 + t0 - 0.5 * (t1 + t2);
end
else
begin
t1 = a2 + a1 * vgsteff - 0.0001;
t2 = sqrt(t1 * t1 + 0.0004 * a2);
Lambda = 0.5 * (t1 + t2);
end
vgst2vtm = vgsteff + 2.0 * vtm;
if ((rds == 0.0) && (Lambda == 1.0))
begin
t0 = 1.0 / (abulk * esatl + vgst2vtm);
t1 = t0 * t0;
t2 = vgst2vtm * t0;
t3 = esatl * vgst2vtm;
vdsat = t3 * t0;
end
else
begin
t9 = abulk * wvcoxrds;
t8 = abulk * t9;
t7 = vgst2vtm * t9;
t6 = vgst2vtm * wvcoxrds;
t0 = 2.0 * abulk * (t9 - 1.0 + 1.0 / Lambda);
t1 = vgst2vtm * (2.0 / Lambda - 1.0) + abulk * esatl + 3.0 * t7;
t2 = vgst2vtm * (esatl + 2.0 * t6);
t3 = sqrt(t1 * t1 - 2.0 * t0 * t2);
vdsat = (t1 - t3) / t0;
end
//***** Effective Vds (line 1359-1398, file b4ld.c) *****//
t1 = vdsat - Vds - delta;
t2 = sqrt(t1 * t1 + 4.0 * delta * vdsat);
t0 = t1 / t2;
t9 = 2.0 * delta;
if (t1 >= 0.0)
vdseff = vdsat - 0.5 * (t1 + t2);
else
begin
t4 = t9 / (t2 - t1);
t5 = 1.0 - t4;
vdseff = vdsat * t5;
end
if (Vds == 0.0)
vdseff = Vds;
if (vdseff > Vds)
vdseff = Vds;
diffvds = Vds - vdseff;
//***** Velocity Overshoot (line 1400-1439, file b4ld.c) *****//
if((lambda != -99.0) && (lambda > 0.0) )
begin
t1 = leff * ueff;
t2 = lambda / t1;
t5 = 1.0 / (esat * litl);
t6 = 1.0 + diffvds * t5;
t7 = 2.0 / (t6 * t6 + 1.0);
t8 = 1.0 - t7;
t10 = 1.0 + t2 * t8;
esatl = esatl * t10;
end
//***** Early Voltage at vdsat (line 1441-1464 , file b4ld.c) *****//
tmp4 = 1.0 - 0.5 * abulk * vdsat / vgst2vtm;
t9 = wvcoxrds * vgsteff;
t0 = esatl + vdsat + 2.0 * t9 * tmp4;
t9 = wvcoxrds * abulk;
t1 = 2.0 / Lambda - 1.0 + t9;
vasat = t0 / t1;
//***** Drain Current for Triode Region (line 1466-1523 , file b4ld.c) *****//
tmp1 = vtfbphi2;
tmp2 = 2.0e8 * toxp;
dt0_dvg = 1.0 / tmp2;
t0 = (vgsteff + tmp1) * dt0_dvg;
tmp3 = exp(0.7 * ln(t0));
t1 = 1.0 + tmp3;
tcen = 1.9e-9 / t1;
coxeff = `EPSSI * coxp / (`EPSSI + coxp * tcen);
coxeffwovl = coxeff * Weff / leff;
beta = ueff * coxeffwovl;
abovvgst2vtm = abulk / vgst2vtm;
t0 = 1.0 - 0.5 * vdseff * abovvgst2vtm;
fgche1 = vgsteff * t0;
t9 = vdseff / esatl;
fgche2 = 1.0 + t9;
gche = beta * fgche1 / fgche2;
t0 = 1.0 + gche * rds;
idl = gche / t0;
//***** Degradation Factor due to Pocket Implant (line 1525-1535 , file b4ld.c) *****//
if (fprout <= 0.0)
fp = 1.0;
else
begin
t9 = fprout * sqrt(leff) / vgst2vtm;
fp = 1.0 / (1.0 + t9);
end
//***** Early Voltage with Channel Length Modulatiom (line 1537-1585, file b4ld.c) *****//
t8 = pvag / esatl;
t9 = t8 * vgsteff;
if (t9 > -0.9)
pvagterm = 1.0 + t9;
else
begin
t4 = 1.0 / (17.0 + 20.0 * t9);
pvagterm = (0.8 + t9) * t4;
end
if ((pclm > 0.0) && (diffvds > 1.0e-10))
begin
t0 = 1.0 + rds * idl;
t2 = vdsat / esat;
t1 = leff + t2;
cclm = fp * pvagterm * t0 * t1 / (pclm * litl);
vaclm = cclm * diffvds;
end
else
begin
vaclm = `MAX_EXP;
cclm = `MAX_EXP;
end
//***** Early Voltage with Drain-INduced Barrier Lowering (line 1587-1635, file b4ld.c) *****//
if (thetarout > 0.0)
begin
t8 = abulk * vdsat;
t0 = vgst2vtm * t8;
t1 = vgst2vtm + t8;
t2 = thetarout;
vadibl = (vgst2vtm - t0 / t1) / t2;
t7 = pdiblb * vbseff;
if (t7 >= -0.9)
begin
t3 = 1.0 / (1.0 + t7);
vadibl = vadibl * t3;
end
else
begin
t4 = 1.0 / (0.8 + t7);
t3 = (17.0 + 20.0 * t7) * t4;
vadibl = vadibl * t3;
end
vadibl = vadibl * pvagterm;
end
else
vadibl = `MAX_EXP;
//***** Early Voltage with Drain-INduced Threshold Shift (line 1643-1664 , file b4ld.c) *****//
if ((pditsd * Vds) > `EXP_THRESHOLD)
t1 = `MAX_EXP;
else
t1 = exp(pditsd * Vds);
if (pdits > 0.0)
vadits = (1.0 + (1.0 + pditsl * leff) * t1) / pdits * fp;
else
vadits = `MAX_EXP;
//***** Early Voltage with Substrate Current Induced Body Effect (line 1666-1685 , file b4.c) *****//
if (pscbe2 > 0.0)
begin
if (diffvds > (pscbe1 * litl / `EXP_THRESHOLD))
begin
t0 = pscbe1 * litl / diffvds;
vascbe = leff * exp(t0) / pscbe2;
end
else
vascbe = `MAX_EXP * leff/pscbe2;
end
else
vascbe = `MAX_EXP;
//***** Drain Current (line 1687-1719 , file b4ld.c) *****//
t9 = diffvds / vadibl;
t0 = 1.0 + t9;
idsa = idl * t0;
t9 = diffvds / vadits;
t0 = 1.0 + t9;
idsa = idsa * t0;
t0 = ln((vasat + vaclm) / vasat);
t1 = t0 / cclm;
t9 = 1.0 + t1;
idsa = idsa * t9;
//***** Substrate current (line 1722-1760, file b4ld.c) *****//
tmp = alpha0 + alpha1 * leff;
if ((tmp <= 0.0) || (beta0 <= 0.0))
isub = 0.0;
else
begin
t2 = tmp / leff;
if (diffvds > beta0 / `EXP_THRESHOLD)
begin
t0 = -beta0 / diffvds;
t1 = t2 * diffvds * exp(t0);
end
else
begin
t3 = t2 * `MIN_EXP;
t1 = t3 * diffvds;
end
t4 = idsa * vdseff;
isub = t1 * t4;
end
csub = isub;
//***** Current Drain (line 1761-1785, file b4ld.c) *****//
t9 = diffvds / vascbe;
t0 = 1.0 + t9;
ids = idsa * t0;
cdrain = ids * vdseff;
//***** Source End Velocity Limit (line 1787-1817, file b4ld.c) *****//
if ((vtl != -99.0) && (vtl > 0.0))
begin
t12 = 1.0 / leff / coxeffwovl;
t11 = t12 / vgsteff;
t10 = -t11 / vgsteff;
vs = cdrain * t11;
t0 = 2 * `MM;
t1 = vs / (vtl * tfactor);
if (t1 <= 0)
t2 = 1.0;
else
t2 = 1.0 + exp(t0 * ln(t1));
fsevl = 1.0 / exp(ln(t2)/ t0);
cdrain = cdrain * fsevl;
end
//***** Rg calculation (line 1824-1858, file b4ld.c) *****//
if (rgatemod > 1)
begin
t9 = xrcrg2 * vtm;
t0 = t9 * beta;
gcrg = xrcrg1 * (t0 + ids);
if (nf != 1.0)
gcrg = gcrg * nf;
if (rgatemod == 2)
begin
t10 = grgeltd * grgeltd;
t11 = grgeltd + gcrg;
gcrg = grgeltd * gcrg / t11;
end
end
//*************** Calculate bias-dependent external S/D resistance (line 1861-1939, file b4ld.c) ****************//
if (rdsmod == 1.0)
begin /* rs(v) */
t0 = vgs - vfbsd;
t1 = sqrt(t0 * t0 + 1.0e-4);
vgs_eff = 0.5 * (t0 + t1);
t0 = 1.0 + prwg * vgs_eff;
t1 = -prwb * vbs;
t2 = 1.0 / t0 + t1;
t3 = t2 + sqrt(t2 * t2 + 0.01);
t4 = rs0 * 0.5;
rs = rswmin + t3 * t4;
t0 = 1.0 + gsdiff * rs;
gstot = gsdiff / t0;
/* rd(v) */
t0 = vgd - vfbsd;
t1 = sqrt(t0 * t0 + 1.0e-4);
vgd_eff = 0.5 * (t0 + t1);
t0 = 1.0 + prwg * vgd_eff;
t1 = -prwb * vbd;
t2 = 1.0 / t0 + t1;
t3 = t2 + sqrt(t2 * t2 + 0.01);
t4 = rd0 * 0.5;
rd = rdwmin + t3 * t4;
t0 = 1.0 + gddiff * rd;
gdtot = gddiff / t0;
end
else
begin
gstot = 0.0;
gdtot = 0.0;
end
//************** Calculate GIDL and GISL current (line 1941-2021, file b4ld.c) *******************//
t0 = 3.0 * toxe;
t1 = (vds - vgs_eff - egidl ) / t0;
if ((agidl <= 0.0) || (bgidl <= 0.0) || (t1 <= 0.0) || (cgidl <= 0.0) || (vbd > 0.0))
igidl = 0.0;
else
begin
t2 = bgidl / t1;
if (t2 < 100.0)
igidl = agidl * weffcj * t1 * exp(-t2);
else
begin
igidl = agidl * weffcj * 3.720075976e-44;
igidl = igidl * t1;
end
t4 = vbd * vbd;
t5 = -vbd * t4;
t6 = cgidl + t5;
t7 = t5 / t6;
t8 = 3.0 * cgidl * t4 / t6 / t6;
igidl = igidl * t7;
end
t1 = (-vds - vgd_eff - egidl ) / t0;
if ((agidl <= 0.0) || (bgidl <= 0.0) || (t1 <= 0.0) || (cgidl <= 0.0) || (vbs > 0.0))
igisl = 0.0;
else
begin
t2 = bgidl / t1;
if (t2 < 100.0)
igisl = agidl * weffcj * t1 * exp(-t2);
else
begin
igisl = agidl * weffcj * 3.720075976e-44;
igisl = igisl * t1;
end
t4 = vbs * vbs;
t5 = -vbs * t4;
t6 = cgidl + t5;
t7 = t5 / t6;
t8 = 3.0 * cgidl * t4 / t6 / t6;
igisl = igisl * t7;
end
//***************** Gate tunneling current (line 2024-2396, file b4ld.c) ****************//
if ((igcmod != 0.0) || (igbmod != 0.0))
begin
v3 = vfbzb - Vgs_eff + vbseff - `DELTA_3;
if (vfbzb<= 0.0)
t0 = sqrt(v3 * v3 - 4.0 * `DELTA_3 * vfbzb);
else
t0 = sqrt(v3 * v3 + 4.0 * `DELTA_3 * vfbzb);
vfbeff = vfbzb- 0.5 * (v3 + t0);
voxacc = vfbzb- vfbeff;
if (voxacc < 0.0)
voxacc = 0.0;
t0 = 0.5 * k1ox;
t3 = Vgs_eff - vfbeff - vbseff - vgsteff;
if (k1ox == 0.0)
voxdepinv = 0.0;
else if (t3 < 0.0)
voxdepinv = -t3;
else
begin
t1 = sqrt(t0 * t0 + t3);
t2 = t0 / t1;
voxdepinv = k1ox * (t1 - t0);
end
voxdepinv = voxdepinv + vgsteff;
end
if (igcmod == 1.0)
begin
t0 = vtm * nigc;
vxnvt = (Vgs_eff - type * vth0) / t0;
if (vxnvt > `EXP_THRESHOLD)
vaux = Vgs_eff - type * vth0;
else if (vxnvt < -`EXP_THRESHOLD)
vaux = t0 * ln(1.0 + `MIN_EXP);
else
begin
expvxnvt = exp(vxnvt);
vaux = t0 * ln(1.0 + expvxnvt);
end
t2 = Vgs_eff * vaux;
t11 = aechvb;
t12 = bechvb;
t3 = aigc * cigc - bigc;
t4 = bigc * cigc;
t5 = t12 * (aigc + t3 * voxdepinv - t4 * voxdepinv * voxdepinv);
if (t5 > `EXP_THRESHOLD)
t6 = `MAX_EXP;
else if (t5 < -`EXP_THRESHOLD)
t6 = `MIN_EXP;
else
t6 = exp(t5);
igc = t11 * t2 * t6;
if (pigcd != -99.0)
modif_pigcd = pigcd;
else
begin
t11 = bechvb * toxe;
t12 = vgsteff + 1.0e-20;
t13 = t11 / t12 / t12;
modif_pigcd = t13 * (1.0 - 0.5 * vdseff / t12);
end
t7 = -modif_pigcd * vdseff;
t8 = t7 * t7 + 2.0e-4;
if (t7 > `EXP_THRESHOLD)
t9 = `MAX_EXP;
else if (t7 < -`EXP_THRESHOLD)
t9 = `MIN_EXP;
else
t9 = exp(t7);
t0 = t8 * t8;
t1 = t9 - 1.0 + 1.0e-4;
t10 = (t1 - t7) / t8;
igcs = igc * t10;
t10 = (t7 * t9 - t1) / t8;
igcd = igc * t10;
t0 = vgs - vfbsd;
vgs_eff = sqrt(t0 * t0 + 1.0e-4);
t2 = vgs * vgs_eff;
t11 = aechvbedge;
t12 = bechvbedge;
t3 = aigsd * cigsd - bigsd;
t4 = bigsd * cigsd;
t5 = t12 * (aigsd + t3 * vgs_eff - t4 * vgs_eff * vgs_eff);
if (t5 > `EXP_THRESHOLD)
t6 = `MAX_EXP;
else if (t5 < -`EXP_THRESHOLD)
t6 = `MIN_EXP;
else
t6 = exp(t5);
igs = t11 * t2 * t6;
t0 = vgd - vfbsd;
vgd_eff = sqrt(t0 * t0 + 1.0e-4);
t2 = vgd * vgd_eff;
t5 = t12 * (aigsd + t3 * vgd_eff - t4 * vgd_eff * vgd_eff);
if (t5 > `EXP_THRESHOLD)
t6 = `MAX_EXP;
else if (t5 < -`EXP_THRESHOLD)
t6 = `MIN_EXP;
else
t6 = exp(t5);
igd = t11 * t2 * t6;
end
else
begin
igcs = 0.0;
igcd = 0.0;
igs = 0.0;
igd = 0.0;
end
if (igbmod == 1.0)
begin
t0 = vtm * nigbacc;
t1 = -Vgs_eff + vbseff + vfbzb;
vxnvt = t1 / t0;
if (vxnvt > `EXP_THRESHOLD)
vaux = t1;
else if (vxnvt < -(`EXP_THRESHOLD))
begin
vaux = t0 * ln(1.0 + `MIN_EXP);
end
else
begin
expvxnvt = exp(vxnvt);
vaux = t0 * ln(1.0 + expvxnvt);
end
t2 = (Vgs_eff - vbseff) * vaux;
t11 = 4.97232e-7 * weff * leff * toxratio;
t12 = -7.45669e11 * toxe;
t3 = aigbacc * cigbacc - bigbacc;
t4 = bigbacc * cigbacc;
t5 = t12 * (aigbacc + t3 * voxacc - t4 * voxacc * voxacc);
if (t5 > `EXP_THRESHOLD)
t6 = `MAX_EXP;
else if (t5 < -`EXP_THRESHOLD)
t6 = `MIN_EXP;
else
t6 = exp(t5);
igbacc = t11 * t2 * t6;
t0 = vtm * nigbinv;
t1 = voxdepinv - eigbinv;
vxnvt = t1 / t0;
if (vxnvt > `EXP_THRESHOLD)
vaux = t1;
else if (vxnvt < -`EXP_THRESHOLD)
vaux = t0 * ln(1.0 + `MIN_EXP);
else
begin
expvxnvt = exp(vxnvt);
vaux = t0 * ln(1.0 + expvxnvt);
end
t2 = (Vgs_eff - vbseff) * vaux;
t11 = t11 * 0.75610;
t12 = t12 * 1.31724;
t3 = aigbinv * cigbinv - bigbinv;
t4 = bigbinv * cigbinv;
t5 = t12 * (aigbinv + t3 * voxdepinv - t4 * voxdepinv * voxdepinv);
if (t5 > `EXP_THRESHOLD)
t6 = `MAX_EXP;
else if (t5 < -`EXP_THRESHOLD)
t6 =`MIN_EXP;
else
t6 = exp(t5);
igbinv = t11 * t2 * t6;
igb = igbinv + igbacc;
end
else
igb = 0.0;
//***** Accounting of device fingers (line 2396-2452, file b4ld.c) *****//
if (nf != 1.0)
begin
cdrain = cdrain * nf;
csub = csub * nf;
igidl = igidl * nf;
igisl = igisl * nf;
igcs = igcs * nf;
igcd = igcd * nf;
igs = igs * nf;
igd = igd * nf;
igb = igb * nf;
end
//***** CV model (line 2484-3288, file b4ld.c) *****//
ccn = 1;
if ((xpart < 0) || (ccn == 0))
begin
qgate = 0.0;
qdrn = 0.0;
qsrc = 0.0;
qbulk = 0.0;
qgmid = 0.0;
end
else if (capmod == 0)
begin
if (vbseff < 0.0)
vbseff = Vbs;
else
vbseff = phi - phis;
vfb = vfbcv;
vth = vfb + phi + k1ox * sqrtphis;
vgst = Vgs_eff - vth;
coxwl = coxe * weffcv * leffcv * nf;
arg1 = Vgs_eff - vbseff - vfb;
if (arg1 <= 0.0)
begin
qgate = coxwl * arg1;
qbulk = -qgate;
qdrn = 0.0;
end
else if (vgst <= 0.0)
begin
t1 = 0.5 * k1ox;
t2 = sqrt(t1 * t1 + arg1);
qgate = coxwl * k1ox * (t2 - t1);
qbulk = -qgate;
qdrn = 0.0;
end
else
begin
two_third_coxwl = 2.0 * (coxe * weffcv * leffcv * nf) / 3.0;
abulkcv = abulk0 * abulkcvfactor;
vdsat = vgst / abulkcv;
if (xpart > 0.5)
begin
/* 0/100 Charge partition model */
if (vdsat <= Vds)
begin
/* saturation region */
t1 = vdsat / 3.0;
qgate = coxwl * (Vgs_eff - vfb - phi - t1);
t2 = -two_third_coxwl * vgst;
qbulk = -(qgate + t2);
qdrn = 0.0;
end
else
begin
/* linear region */
alphaz = vgst / vdsat;
t1 = 2.0 * vdsat - Vds;
t2 = Vds / (3.0 * t1);
t3 = t2 * Vds;
t9 = 0.25 * coxwl;
t4 = t9 * alphaz;
t7 = 2.0 * Vds - t1 - 3.0 * t3;
t8 = t3 - t1 - 2.0 * Vds;
qgate = coxwl * (Vgs_eff - vfb - phi - 0.5 * (Vds - t3));
t10 = t4 * t8;
qdrn = t4 * t7;
qbulk = -(qgate + qdrn + t10);
end
end
else if (xpart < 0.5)
begin
/* 40/60 Charge partition model */
if (Vds >= vdsat)
begin
/* saturation region */
t1 = vdsat / 3.0;
qgate = coxwl * (Vgs_eff - vfb - phi - t1);
t2 = -two_third_coxwl * vgst;
qbulk = -(qgate + t2);
qdrn = 0.4 * t2;
end
else
begin
/* linear region */
alphaz = vgst / vdsat;
t1 = 2.0 * vdsat - Vds;
t2 = Vds / (3.0 * t1);
t3 = t2 * Vds;
t9 = 0.25 * coxwl;
t4 = t9 * alphaz;
qgate = coxwl * (Vgs_eff - vfb - phi - 0.5 * (Vds - t3));
t6 = 8.0 * vdsat * vdsat - 6.0 * vdsat * Vds + 1.2 * Vds * Vds;
t8 = t2 / t1;
t7 = Vds - t1 - t8 * t6;
qdrn = t4 * t7;
t7 = 2.0 * (t1 + t3);
qbulk = -(qgate - t4 * t7);
end
end
else
begin
/* 50/50 partitioning */
if (Vds >= vdsat)
begin
/* saturation region */
t1 = vdsat / 3.0;
qgate = coxwl * (Vgs_eff - vfb - phi - t1);
t2 = -two_third_coxwl * vgst;
qbulk = -(qgate + t2);
qdrn = 0.5 * t2;
end
else
begin
/* linear region */
alphaz = vgst / vdsat;
t1 = 2.0 * vdsat - Vds;
t2 = Vds / (3.0 * t1);
t3 = t2 * Vds;
t9 = 0.25 * coxwl;
t4 = t9 * alphaz;
qgate = coxwl * (Vgs_eff - vfb - phi - 0.5 * (Vds - t3));
t7 = t1 + t3;
qdrn = -t4 * t7;
qbulk = - (qgate + qdrn + qdrn);
end
end
end
end
else
begin
if (vbseff < 0.0)
vbseffcv = vbseff;
else
vbseffcv = phi - phis;
coxwl = coxe * weffcv * leffcv * nf;
t0 = vtm * n * noff;
vgstnvt = (vgst - voffcv) / t0;
if (vgstnvt > `EXP_THRESHOLD)
vgsteff = vgst - voffcv;
else if (vgstnvt < -`EXP_THRESHOLD)
vgsteff = t0 * ln(1.0 + `MIN_EXP);
else
vgsteff = t0 * ln(1.0 + exp(vgstnvt));
if (capmod == 1)
begin
v3 = vfbzb - Vgs_eff + vbseffcv - `DELTA_3;
if (vfbzb <= 0.0)
t0 = sqrt(v3 * v3 - 4.0 * `DELTA_3 * vfbzb);
else
t0 = sqrt(v3 * v3 + 4.0 * `DELTA_3 * vfbzb);
t1 = 0.5 * (1.0 + v3 / t0);
vfbeff = vfbzb - 0.5 * (v3 + t0);
qac0 = coxwl * (vfbeff - vfbzb);
t0 = 0.5 * k1ox;
t3 = Vgs_eff - vfbeff - vbseffcv - vgsteff;
if (k1ox == 0.0)
begin
t1 = 0.0;
t2 = 0.0;
end
else if (t3 < 0.0)
begin
t1 = t0 + t3 / k1ox;
t2 = coxwl;
end
else
begin
t1 = sqrt(t0 * t0 + t3);
t2 = coxwl * t0 / t1;
end
qsub0 = coxwl * k1ox * (t1 - t0);
abulkcv = abulk0 * abulkcvfactor;
vdsatcv = vgsteff / abulkcv;
t0 = vdsatcv - Vds - `DELTA_4;
t1 = sqrt(t0 * t0 + 4.0 * `DELTA_4 * vdsatcv);
if (t0 >= 0.0)
vdseffcv = vdsatcv - 0.5 * (t0 + t1);
else
begin
t3 = (`DELTA_4 + `DELTA_4) / (t1 - t0);
t4 = 1.0 - t3;
t5 = vdsatcv * t3 / (t1 - t0);
vdseffcv = vdsatcv * t4;
end
if (Vds == 0.0)
vdseffcv = 0.0;
t0 = abulkcv * vdseffcv;
t1 = 12.0 * (vgsteff - 0.5 * t0 + 1.0e-20);
t2 = t0 / t1;
t3 = t0 * t2;
qgate = coxwl * (vgsteff - 0.5 * t0 + t3);
t7 = 1.0 - abulkcv;
qbulk = coxwl * t7 * (0.5 * vdseffcv - t3);
if (xpart > 0.5)
begin
/* 0/100 Charge petition model */
t1 = t1 + t1;
qsrc = -coxwl * (0.5 * vgsteff + 0.25 * t0 - t0 * t0 / t1);
end
else if (xpart < 0.5)
begin
/* 40/60 Charge petition model */
t1 = t1 / 12.0;
t2 = 0.5 * coxwl / (t1 * t1);
t3 = vgsteff * (2.0 * t0 * t0 / 3.0 + vgsteff * (vgsteff - 4.0 * t0 / 3.0)) - 2.0 * t0 * t0 * t0 / 15.0;
qsrc = -t2 * t3;
end
else
/* 50/50 Charge petition model */
qsrc = -0.5 * (qgate + qbulk);
qgate = qgate + qac0 + qsub0;
qbulk = qbulk - (qac0 + qsub0);
qdrn = -(qgate + qbulk + qsrc);
end
else if (capmod == 2)
begin
v3 = vfbzb - Vgs_eff + vbseffcv - `DELTA_3;
if (vfbzb <= 0.0)
t0 = sqrt(v3 * v3 - 4.0 * `DELTA_3 * vfbzb);
else
t0 = sqrt(v3 * v3 + 4.0 * `DELTA_3 * vfbzb);
t1 = 0.5 * (1.0 + v3 / t0);
vfbeff = vfbzb - 0.5 * (v3 + t0);
tox = 1.0e8 * toxp;
t0 = (Vgs_eff - vbseffcv - vfbzb) / tox;
tmp = t0 * acde;
if ((-`EXP_THRESHOLD < tmp) && (tmp < `EXP_THRESHOLD))
tcen = ldeb * exp(tmp);
else if (tmp <= -`EXP_THRESHOLD)
tcen = ldeb * `MIN_EXP;
else
tcen = ldeb * `MAX_EXP;
link = 1.0e-3 * toxp;
v3 = ldeb - tcen - link;
v4 = sqrt(v3 * v3 + 4.0 * link * ldeb);
tcen = ldeb - 0.5 * (v3 + v4);
ccen = `EPSSI / tcen;
t2 = coxp / (coxp + ccen);
coxeff = t2 * ccen;
coxwlcen = coxwl * coxeff / coxe;
qac0 = coxwlcen * (vfbeff - vfbzb);
t0 = 0.5 * k1ox;
t3 = Vgs_eff - vfbeff - vbseffcv - vgsteff;
if (k1ox == 0.0)
begin
t1 = 0.0;
t2 = 0.0;
end
else if (t3 < 0.0)
begin
t1 = t0 + t3 / k1ox;
t2 = coxwlcen;
end
else
begin
t1 = sqrt(t0 * t0 + t3);
t2 = coxwlcen * t0 / t1;
end
qsub0 = coxwlcen * k1ox * (t1 - t0);
if (k1ox <= 0.0)
begin
denomi = 0.25 * moin * vtm;
t0 = 0.5 * sqrtphi;
end
else
begin
denomi = moin * vtm * k1ox * k1ox;
t0 = k1ox * sqrtphi;
end
t1 = 2.0 * t0 + vgsteff;
deltaphi = vtm * ln(1.0 + t1 * vgsteff / denomi);
tox = tox + tox;
t0 = (vgsteff + vtfbphi2) / tox;
tmp = exp(0.7 * ln(t0));
t1 = 1.0 + tmp;
tcen = 1.9e-9 / t1;
ccen = `EPSSI / tcen;
t0 = coxp / (coxp + ccen);
coxeff = t0 * ccen;
coxwlcen = coxwl * coxeff / coxe;
abulkcv = abulk0 * abulkcvfactor;
vdsatcv = (vgsteff - deltaphi) / abulkcv;
t0 = vdsatcv - Vds - `DELTA_4;
t1 = sqrt(t0 * t0 + 4.0 * `DELTA_4 * vdsatcv);
if (t0 >= 0.0)
vdseffcv = vdsatcv - 0.5 * (t0 + t1);
else
begin
t3 = (`DELTA_4 + `DELTA_4) / (t1 - t0);
t4 = 1.0 - t3;
vdseffcv = vdsatcv * t4;
end
if (Vds == 0.0)
vdseffcv = 0.0;
t0 = abulkcv * vdseffcv;
t1 = vgsteff - deltaphi;
t2 = 12.0 * (t1 - 0.5 * t0 + 1.0e-20);
t3 = t0 / t2;
qgate = coxwlcen * (t1 - t0 * (0.5 - t3));
t7 = 1.0 - abulkcv;
qbulk = coxwlcen * t7 * (0.5 * vdseffcv - t0 * vdseffcv / t2);
if (xpart > 0.5)
/* 0/100 partition */
qsrc = -coxwlcen * (t1 / 2.0 + t0 / 4.0 - 0.5 * t0 * t0 / t2);
else if (xpart < 0.5)
begin
/* 40/60 partition */
t2 = t2 / 12.0;
t3 = 0.5 * coxwlcen / (t2 * t2);
t4 = t1 * (2.0 * t0 * t0 / 3.0 + t1 * (t1 - 4.0 * t0 / 3.0)) - 2.0 * t0 * t0 * t0 / 15.0;
qsrc = -t3 * t4;
end
else
/* 50/50 partition */
qsrc = -0.5 * qgate;
qgate = qgate + qac0 + qsub0 - qbulk;
qbulk = qbulk - (qac0 + qsub0);
qdrn = -(qgate + qbulk + qsrc);
end
end
if (ccn == 1)
qsrc = -(qgate + qbulk + qdrn);
//***** Junction Diode CV Model (line 3333-3450, file b4ld.c) *****//
if (ccn == 1)
begin
czbd = cjd_temp * adeff;
czbs = cjs_temp * aseff;
czbdsw = cjswd_temp * pdeff;
czbdswg = cjswgd_temp * weffcj * nf;
czbssw = cjsws_temp * pseff;
czbsswg = cjswgs_temp * weffcj * nf;
/* Source Bulk Junction */
if (vbs_jct == 0.0)
qbs = 0.0;
else if (vbs_jct < 0.0)
begin
if (czbs > 0.0)
begin
arg = 1.0 - vbs_jct / phibs;
if (mjs == 0.5)
sarg = 1.0 / sqrt(arg);
else
sarg = exp(-mjs * ln(arg));
qbs = phibs * czbs * (1.0 - arg * sarg) / (1.0 - mjs);
end
else
qbs = 0.0;
if (czbssw > 0.0)
begin
arg = 1.0 - vbs_jct / phibsws;
if (mjsws == 0.5)
sarg = 1.0 / sqrt(arg);
else
sarg = exp(-mjsws * ln(arg));
qbs = qbs + phibsws * czbssw * (1.0 - arg * sarg) / (1.0 - mjsws);
end
if (czbsswg > 0.0)
begin
arg = 1.0 - vbs_jct / phibswgs;
if (mjswgs == 0.5)
sarg = 1.0 / sqrt(arg);
else
sarg = exp(-mjswgs * ln(arg));
qbs = qbs + phibswgs * czbsswg * (1.0 - arg * sarg) / (1.0 - mjswgs);
end
end
else
begin
t0 = czbs + czbssw + czbsswg;
t1 = vbs_jct * (czbs * mjs / phibs + czbssw * mjsws / phibsws + czbsswg * mjswgs / phibswgs);
qbs = vbs_jct * (t0 + 0.5 * t1);
end
/* Drain Bulk Junction */
if (vbd_jct == 0.0)
qbd = 0.0;
else if (vbd_jct < 0.0)
begin
if (czbd > 0.0)
begin
arg = 1.0 - vbd_jct / phibd;
if (mjd == 0.5)
sarg = 1.0 / sqrt(arg);
else
sarg = exp(-mjd * ln(arg));
qbd = phibd * czbd * (1.0 - arg * sarg) / (1.0 - mjd);
end
else
qbd = 0.0;
if (czbdsw > 0.0)
begin
arg = 1.0 - vbd_jct / phibswd;
if (mjswd == 0.5)
sarg = 1.0 / sqrt(arg);
else
sarg = exp(-mjswd * ln(arg));
qbd = qbd + phibswd * czbdsw * (1.0 - arg * sarg) / (1.0 - mjswd);
end
if (czbdswg > 0.0)
begin
arg = 1.0 - vbd_jct / phibswgd;
if (mjswgd == 0.5)
sarg = 1.0 / sqrt(arg);
else
sarg = exp(-mjswgd * ln(arg));
qbd = qbd + phibswgd * czbdswg * (1.0 - arg * sarg) / (1.0 - mjswgd);
end
end
else
begin
t0 = czbd + czbdsw + czbdswg;
t1 = vbd_jct * (czbd * mjd / phibd + czbdsw * mjswd / phibswd + czbdswg * mjswgd / phibswgd);
qbd = vbd_jct * (t0 + 0.5 * t1);
end
end
//***** Overlap capacitances (line 3519-3558, file b4ld.c) *****//
if (ccn == 1)
begin
if (capmod == 0)
begin
cgdo = param_cgdo;
cgso = param_cgso;
qgdo = param_cgdo * vgd;
qgso = param_cgso * vgs;
end
else /* For both capMod == 1 and 2 */
begin
t0 = vgd + `DELTA_1;
t1 = sqrt(t0 * t0 + 4.0 * `DELTA_1);
t2 = 0.5 * (t0 - t1);
t3 = weffcv * cgdl;
t4 = sqrt(1.0 - 4.0 * t2 / ckappad);
cgdo = param_cgdo + t3 - t3 * (1.0 - 1.0 / t4) * (0.5 - 0.5 * t0 / t1);
qgdo = (param_cgdo + t3) * vgd - t3 * (t2 + 0.5 * ckappad * (t4 - 1.0));
t0 = vgs + `DELTA_1;
t1 = sqrt(t0 * t0 + 4.0 * `DELTA_1);
t2 = 0.5 * (t0 - t1);
t3 = weffcv * cgsl;
t4 = sqrt(1.0 - 4.0 * t2 / ckappas);
cgso = param_cgso + t3 - t3 * (1.0 - 1.0 / t4) * (0.5 - 0.5 * t0 / t1);
qgso = (param_cgso + t3) * vgs - t3 * (t2 + 0.5 * ckappas * (t4 - 1.0));
end
if (nf != 1.0)
begin
cgdo = cgdo * nf;
cgso = cgso * nf;
qgdo = qgdo * nf;
qgso = qgso * nf;
end
if (mode > 0)
begin
qdrn = qdrn - qgdo;
if (rgatemod == 3)
begin
qgmb = cgbo * vgmb;
qgmid = qgdo + qgso + qgmb;
qbulk = qbulk - qgmb;
qsrc = -(qgate + qgmid + qbulk + qdrn);
end
else
begin
qgb = cgbo * vgb;
qgate = qgate + qgdo + qgso + qgb;
qbulk = qbulk - qgb;
qsrc = -(qgate + qbulk + qdrn);
end
end
else
begin
qsrc = qdrn - qgso;
if (rgatemod == 3)
begin
qgmb = cgbo * vgmb;
qgmid = qgdo + qgso + qgmb;
qbulk = qbulk - qgmb;
qdrn = -(qgate + qgmid + qbulk + qsrc);
end
else
begin
qgb = cgbo * vgb;
qgate = qgate + qgdo + qgso + qgb;
qbulk = qbulk - qgb;
qdrn = -(qgate + qbulk + qsrc);
end
end
qd = qdrn - qbd;
qs = qsrc - qbs;
if (rbodymod == 0)
qb = qbulk + qbd + qbs;
else
qb = qbulk;
end
//****** Here all currents going through the device are taken in account ******//
I(sourceb, sourcep) <+ type * cbs;
I(drainb, drainp) <+ type * cbd;
if (igbmod == 1)
I(bulk, gatep) <+ -type * igb;
if (igcmod == 1)
begin
I(source, gatep) <+ -type * (igs + igcs);
I(drain, gatep) <+ -type * (igd + igcd);
end
if (mode == 1)
begin
I(drainp , sourcep) <+ type * cdrain;
I(drainp , bulkp) <+ type * (csub + igidl);
I(sourcep, bulkp) <+ type * igisl;
end
else
begin
I(drainp , sourcep) <+ -type * cdrain;
I(drainp , bulkp) <+ type * (csub + igisl);
I(sourcep, bulkp) <+ type * igidl;
end
if (rdsmod == 0)
begin
V(source, sourcep) <+ 0;
V(drainp, drain) <+ 0;
end
else
begin
I(drain, drainp) <+ type * gdtot * vded;
I(source, sourcep) <+ type * gstot * vses;
end
if (rgatemod == 0)
begin
V(gate, gatem) <+ 0;
V(gatem, gatep) <+ 0;
end
else if (rgatemod == 1)
begin
V(gatep, gatem) <+ 0;
I(gate, gatem) <+ type * grgeltd * vgeg;
end
else if (rgatemod == 2)
begin
V(gatep, gatem) <+ 0;
I(gate, gatem) <+ type * gcrg * vgeg;
end
else
begin
I(gatem, gatep) <+ type * gcrg * vgmg;
I(gate, gatem) <+ type * grgeltd * vgegm;
`ifdef RGATE3
I(gatem, sourcep) <+ type * ddt(qgmid);
`endif
end
if (rbodymod == 0)
begin
V(bulk, bulkp) <+ 0;
V(bulkp, sourceb) <+ 0;
V(bulkp, drainb) <+ 0;
end
else
begin
I(sourceb, bulkp) <+ -type * grbps * vbsb;
I(drainb, bulkp) <+ -type * grbpd * vbdb;
I(bulk, bulkp) <+ type * grbpb * vbeb;
I(bulk, sourceb) <+ type * grbsb * vbesb;
I(bulk, drainb) <+ type * grbdb * vbedb;
end
I(gatep, sourcep) <+ type * ddt(qgate);
I(drainp, sourcep) <+ type * ddt(qd);
I(bulkp, sourcep) <+ type * ddt(qb);
`ifdef RBODY
if (rbodymod == 1)
begin
I(drainb, sourcep) <+ type * ddt(qbd);
I(sourceb, sourcep) <+ type * ddt(qbs);
end
`endif
end
endmodule
rubberband_example_13.in
Testing CAPTAB option with BSIM4 and CAP models * based on EXAMPLE7. TWO-BIT MOSFET ADDER * .option BRIEF + itl1=400 + itl4=50 .verilog bsim4.va .GLOBAL VSS .SUBCKT NAND 1 2 3 YVLG1 3 1 VSS VSS MOSP W=10U L=1.3U YVLG2 3 2 VSS VSS MOSP W=10U L=1.3U YVLG3 3 1 10 0 MOSN W=5U L=1.3U YVLG4 10 2 0 0 MOSN W=5U L=1.3U C1 3 0 55FF .ENDS NAND ************* INA INB CIN OUT COUT .SUBCKT ONEBIT 1 2 3 4 5 X1 1 2 7 NAND X2 1 7 8 NAND X3 2 7 9 NAND X4 8 9 10 NAND X5 3 10 11 NAND X6 3 11 12 NAND X7 10 11 13 NAND X8 12 13 4 NAND X9 11 7 5 NAND .ENDS ONEBIT .SUBCKT TWOBIT INA1 INB1 INA2 INB2 BIT1 BIT2 CIN COUT X1 INA1 INB1 CIN BIT1 10 ONEBIT X2 INA2 INB2 10 BIT2 COUT ONEBIT .ENDS TWOBIT VINA1 1 0 PULSE( 0.8 0.0 0 10NS 10NS 140NS 300NS) VINB1 2 0 PULSE( 0.8 0.0 0 10NS 10NS 290NS 600NS) VINA2 3 0 PULSE( 0.8 0.0 0 10NS 10NS 140NS 300NS) VINB2 4 0 PULSE( 0.8 0.0 0 10NS 10NS 290NS 600NS) VINCIN CIN 0 PULSE( 0.0 0.8 0 10NS 10NS 65NS 150NS) VSS VSS 0 DC 0.8 X1 1 2 3 4 BIT1 BIT2 CIN COUT TWOBIT * .TRAN 10NS 240NS .MEASURE TRAN MAX_BIT1 MAX V(BIT1) .MEASURE TRAN MAX_COUT1 MAX V(X1.10) .MEASURE TRAN DEL_BIT1_CIN DELAY + V(CIN) FALL=1 VAL=0.4 + TARG=V(BIT1) FALL=1 VAL0=0 VAL1=MAX_BIT1 .MEASURE TRAN FALL_BIT2 WAVE + V(BIT2) FROM=40NS FALL=1 VAL0=0 VAL1=0.8 .MEASURE TRAN FALL_BIT1 WAVE + V(BIT1) FROM=40NS FALL=1 VAL0=0 VAL1=0.8 .MEASURE TRAN WIDTH_COUT1 DELAY + V(X1.10) RISE=1 VAL0=0 VAL1=MAX_COUT1 + TARG=V(X1.10) FALL=1 VAL0=0 VAL1=MAX_COUT1 .OPTIONS ACCT NOMOD .MODEL MOSN VLG MODULE=mosfet TYPE=1 TNOM=27 + EPSROX=3.9 TOXE=3e-9 TOXP=3e-9 TOXM=3e-9 TOXREF=3e-9 DTOX=0 + MOBMOD=0 RDSMOD=0 IGCMOD=0 IGBMOD=0 DIOMOD=1 CAPMOD=2 + RGATEMOD=0 RBODYMOD=0 *+ TRNQSMOD=0 ACNQSMOD=0 FNOIMOD=1 TNOIMOD=0 + PERMOD=1 GEOMOD=1 *+ PARAMCHK=0 BINUNIT=1 + NDEP=1.7e17 NGATE=9e19 VTH0=0.42 EACH=10% PHIN=0 XJ=9e-8 NSD=1e20 + VFB=-0.76 K1=0.33 K2=-1.87e-2 K3=80 K3b=0 W0=2.5e-6 KT1=-0.11 + KT1L=0 KT2=2.2e-2 LPE0=5.75e-8 LPEB=2.3e-10 DVT0=2.89 DVT1=0.53 + DVT2=-3.2e-2 DVT0W=0 DVT1W=0 DVT2W=0 DVTP0=7.32e-7 DVTP1=0.12 + DSUB=0.058 ETA0=0.001 ETAB=0 + CDSC=2.58e-4 CDSCD=6.1e-8 CDSCB=0 CIT=0 NFACTOR=1.1 VOFF=-0.02 VOFFL=0 + MINV=0.05 VSAT=9.2e4 AT=3.3e4 U0=4.19e-2 UA=8.7e-16 UB=3.06e-18 + UC=4.6e-13 UTE=-1.5 UA1=4.31e-9 UB1=7.61e-18 UC1=-5.6e-11 + RDSW=369.4 RDW=184.7 RSW=184.7 PRWG=3.22e-8 PRWB=6.8e-11 WR=1 + RDSWMIN=0 RDWMIN=0 RSWMIN=0 PRT=0 A0=1.1 AGS=1e-20 B0=-1e-20 + B1=0 KETA=-0.047 A1=0 A2=1 DELTA=0.014 PVAG=1e-20 PCLM=6.28e-4 + PDITS=0.2 PDITSL=2.3e6 PDITSD=0.23 FPROUT=0.2 *+ PDIBLCB=3.4e-8 PDIBLC1=0.81 PDIBLC2=9.84e-06 + DROUT=0.56 PSCBE1=8.14e8 PSCBE2=9.58e-07 + LINT=5e-9 WINT=5e-9 DWG=0 DWB=0 WL=0 WW=0 WWL=0 + WLN=1 WWN=1 LL=0 LW=0 LWL=0 LLN=1 LWN=1 + XGW=3e-7 XGL=4e-8 NGCON=1 RSHG=0.4 XRCRG1=12 XRCRG2=5 + DMCG=5e-6 DMCI=5e-6 DMDG=5e-6 DMCGT=6e-7 DWJ=4.5e-8 RSH=6 + RBDB=15 RBPD=15 RBSB=15 RBPS=15 RBPB=5 GBMIN=1e-10 + CGSO=7.43e-10 CGDO=7.43e-10 CGBO=2.56e-11 CGSL=1e-14 CGDL=1e-14 + CKAPPAS=0.5 CKAPPAD=0.5 NOFF=0.9 VOFFCV=0.02 ACDE=1 MOIN=15 XPART=0 + JSS=1e-4 JSWS=1e-11 JSWGS=1e-10 CJS=5e-4 CJSWS=5e-10 CJSWGS=3e-10 + PBS=1 PBSWS=1 PBSWGS=1 NJS=1 XTIS=3 MJS=0.5 MJSWS=0.33 MJSWGS=0.33 + XJBVS=1 BVS=10 IJTHSFWD=1e-2 IJTHSREV=1e-3 + JSD=1e-4 JSWD=1e-11 JSWGD=1e-10 CJD=5e-4 CJSWD=5e-10 CJSWGD=5e-10 + PBD=1 PBSWD=1 PBSWGD=1 NJD=1 XTID=3 MJD=0.5 MJSWD=0.33 MJSWGD=0.33 + XJBVD=1 BVD=10 IJTHDFWD=1e-2 IJTHDREV=1e-3 + TCJ=1e-3 TCJSW=1e-3 TCJSWG=1e-3 TPB=0.005 TPBSW=0.005 TPBSWG=0.005 + ALPHA0=7.4e-2 ALPHA1=0.005 BETA0=30 AGIDL=2e-4 BGIDL=2.1e9 CGIDL=2e-4 + EGIDL=0.8 AIGC=0.043 BIGC=0.0054 CIGC=0.0075 AIGSD=0.043 BIGSD=0.0054 + CIGSD=0.0075 DLCIG=2.2e-8 AIGBACC=0.043 BIGBACC=0.0054 CIGBACC=0.0075 + AIGBINV=0.35 BIGBINV=0.03 CIGBINV=0.006 NIGC=1 NIGBACC=1 NIGBINV=3 + NTOX=1 EIGBINV=1.1 PIGCD=1.0 POXEDGE=1 * .MODEL MOSP VLG MODULE=mosfet TYPE=-1 TNOM=27 + EPSROX=3.9 TOXE=3e-9 TOXP=3e-9 TOXM=3e-9 TOXREF=3e-9 DTOX=0 + MOBMOD=0 RDSMOD=0 IGCMOD=0 IGBMOD=0 DIOMOD=1 CAPMOD=2 + RGATEMOD=0 RBODYMOD=0 *+ TRNQSMOD=0 ACNQSMOD=0 FNOIMOD=1 TNOIMOD=0 + PERMOD=1 GEOMOD=1 *+ PARAMCHK=0 BINUNIT=1 + NDEP=1.7e17 NGATE=9e19 VTH0=-0.42 EACH=15% PHIN=0 XJ=9e-8 NSD=1e20 + VFB=0.76 K1=0.33 K2=-1.87e-2 K3=80 K3b=0 W0=2.5e-6 KT1=-0.11 + KT1L=0 KT2=2.2e-2 LPE0=5.75e-8 LPEB=2.3e-10 DVT0=2.89 DVT1=0.53 + DVT2=-3.2e-2 DVT0W=0 DVT1W=0 DVT2W=0 DVTP0=7.32e-7 DVTP1=0.12 + DSUB=0.058 ETA0=0.001 ETAB=0 + CDSC=2.58e-4 CDSCD=6.1e-8 CDSCB=0 CIT=0 NFACTOR=1.1 VOFF=-0.02 VOFFL=0 + MINV=0.05 VSAT=9.2e4 AT=3.3e4 U0=4.19e-2 UA=8.7e-16 UB=3.06e-18 + UC=4.6e-13 UTE=-1.5 UA1=4.31e-9 UB1=7.61e-18 UC1=-5.6e-11 + RDSW=369.4 RDW=184.7 RSW=184.7 PRWG=3.22e-8 PRWB=6.8e-11 WR=1 + RDSWMIN=0 RDWMIN=0 RSWMIN=0 PRT=0 A0=1.1 AGS=1e-20 B0=-1e-20 + B1=0 KETA=-0.047 A1=0 A2=1 DELTA=0.014 PVAG=1e-20 PCLM=6.28e-4 + PDITS=0.2 PDITSL=2.3e6 PDITSD=0.23 FPROUT=0.2 *+ PDIBLCB=3.4e-8 PDIBLC1=0.81 PDIBLC2=9.84e-06 + DROUT=0.56 PSCBE1=8.14e8 PSCBE2=9.58e-07 + LINT=5e-9 WINT=5e-9 DWG=0 DWB=0 WL=0 WW=0 WWL=0 + WLN=1 WWN=1 LL=0 LW=0 LWL=0 LLN=1 LWN=1 + XGW=3e-7 XGL=4e-8 NGCON=1 RSHG=0.4 XRCRG1=12 XRCRG2=5 + DMCG=5e-6 DMCI=5e-6 DMDG=5e-6 DMCGT=6e-7 DWJ=4.5e-8 RSH=6 + RBDB=15 RBPD=15 RBSB=15 RBPS=15 RBPB=5 GBMIN=1e-10 + CGSO=7.43e-10 CGDO=7.43e-10 CGBO=2.56e-11 CGSL=1e-14 CGDL=1e-14 + CKAPPAS=0.5 CKAPPAD=0.5 NOFF=0.9 VOFFCV=0.02 ACDE=1 MOIN=15 XPART=0 + JSS=1e-4 JSWS=1e-11 JSWGS=1e-10 CJS=5e-4 CJSWS=5e-10 CJSWGS=3e-10 + PBS=1 PBSWS=1 PBSWGS=1 NJS=1 XTIS=3 MJS=0.5 MJSWS=0.33 MJSWGS=0.33 + XJBVS=1 BVS=10 IJTHSFWD=1e-2 IJTHSREV=1e-3 + JSD=1e-4 JSWD=1e-11 JSWGD=1e-10 CJD=5e-4 CJSWD=5e-10 CJSWGD=5e-10 + PBD=1 PBSWD=1 PBSWGD=1 NJD=1 XTID=3 MJD=0.5 MJSWD=0.33 MJSWGD=0.33 + XJBVD=1 BVD=10 IJTHDFWD=1e-2 IJTHDREV=1e-3 + TCJ=1e-3 TCJSW=1e-3 TCJSWG=1e-3 TPB=0.005 TPBSW=0.005 TPBSWG=0.005 + ALPHA0=7.4e-2 ALPHA1=0.005 BETA0=30 AGIDL=2e-4 BGIDL=2.1e9 CGIDL=2e-4 + EGIDL=0.8 AIGC=0.043 BIGC=0.0054 CIGC=0.0075 AIGSD=0.043 BIGSD=0.0054 + CIGSD=0.0075 DLCIG=2.2e-8 AIGBACC=0.043 BIGBACC=0.0054 CIGBACC=0.0075 + AIGBINV=0.35 BIGBINV=0.03 CIGBINV=0.006 NIGC=1 NIGBACC=1 NIGBINV=3 + NTOX=1 EIGBINV=1.1 PIGCD=1.0 POXEDGE=1 .END

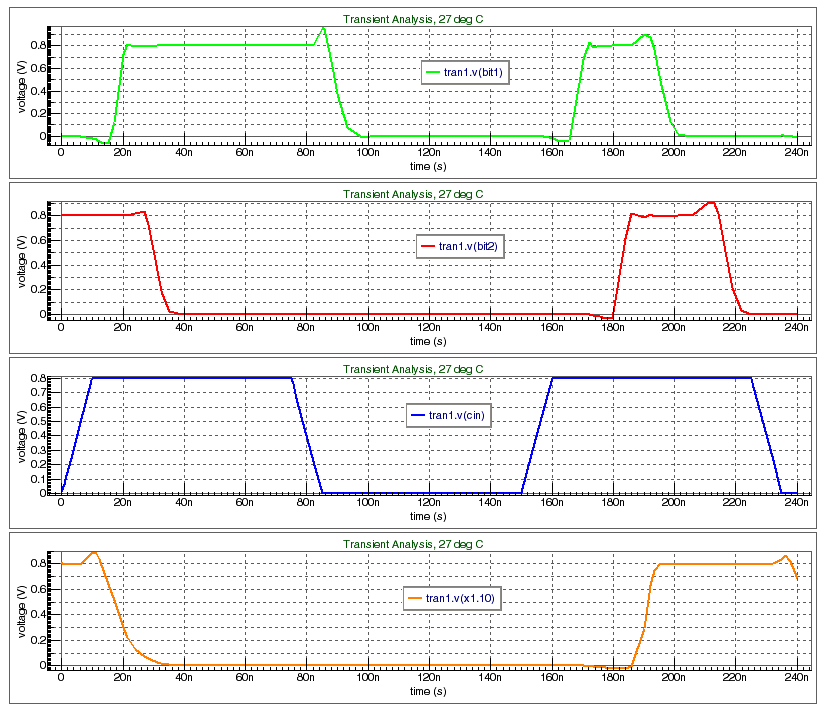

Graphics
