TFT SPICE Model Parameter Extraction

vwfex08 : TFT SPICE Model Parameter Extraction

Requires: VWF, ATHENA, ATLAS and UTMOSTIV

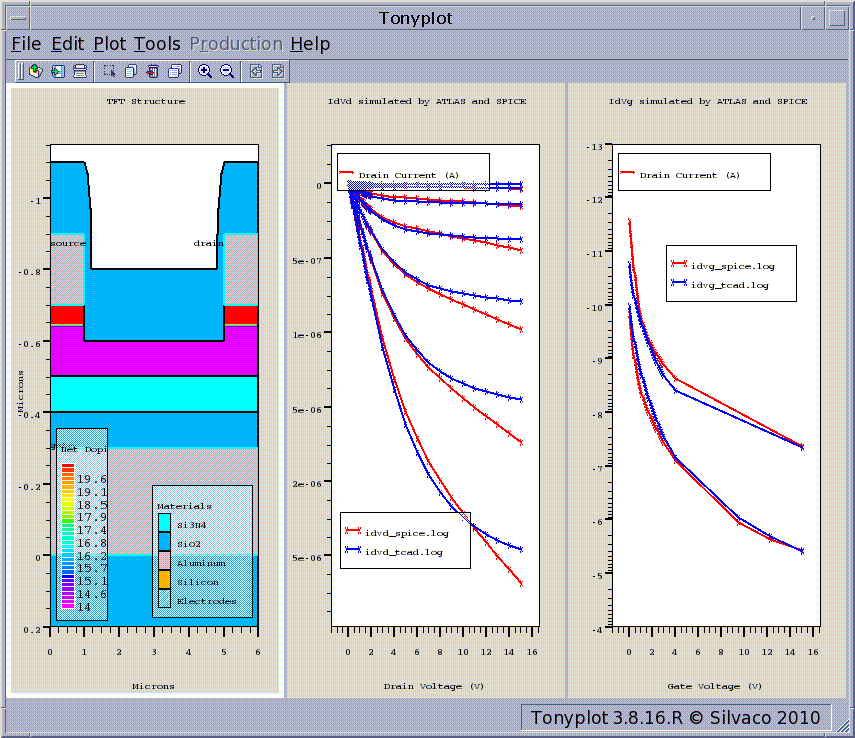

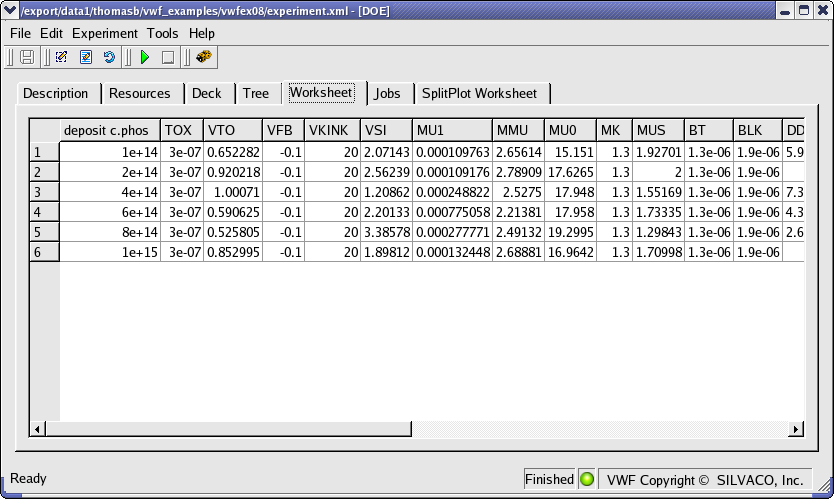

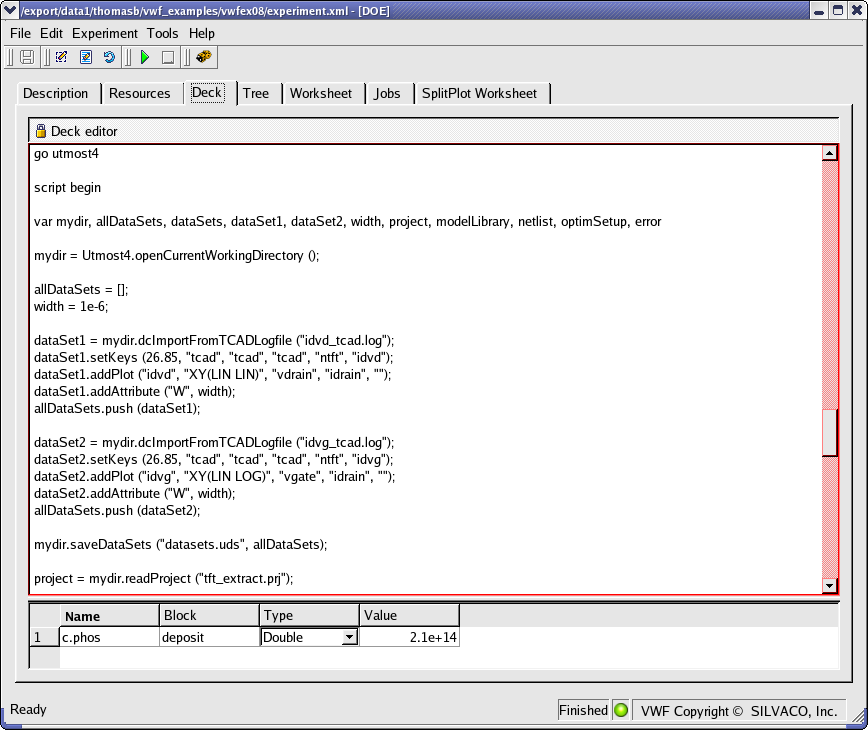

This example demonstrates how to perform a process and device simulation of a TFT device, and for each process splits extract a corresponding SPICE model using UTMOSTIV.

To open and run this example, select the Help Load example button in the VWF explorer. This will import all examples into your database. Once imported, the examples will be available under the directory called examples.
